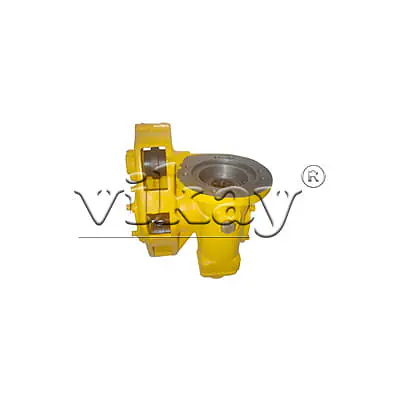

Worm Gear Housing Complete - Five Start 3162166380 Replacement
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Worm Gear Box Complete - Five Start 3162166380 Replacement
Vikay is a global supplier of new aftermarket replacement parts - Worm Gear Box Complete - Five Start 3162166380 for Atlas Copco Wagon Drill Bvb-25 from India.
Product
Worm Gear Box Complete - Five Start 3162166380

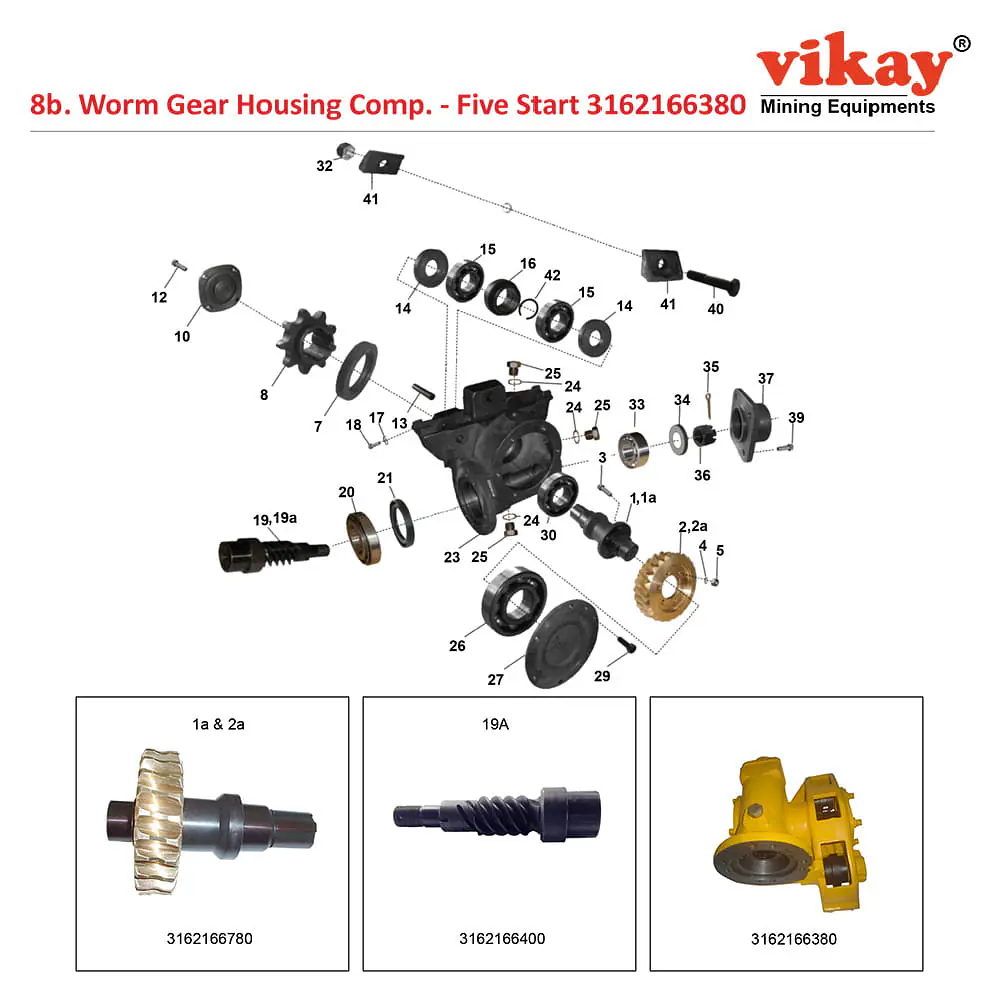

| No. | Description | Modified | Ref. Part No. | ||
| - | Worm Gear Housing Complete - Five Start (1-27) | 3162166380 | |||
| 1a & 2a | - Shaft Complete with Worm Gear - Five Start | 3162166780 | |||
| 1a | - Shaft only for Five start | 3162166700 | |||
| 2a | - Worm Gear, Five Start (Bronze Repear 2a) | 3162166700 * | |||
| 3 | - Bolt | 3162048100 | |||
| 4 | - Spring Washer | ||||
| 5 | - Nut (Modified) | * | M100085 | ||
| 7 | - Seal Ring | 0666439300 | |||
| 8 | - Sprocket | 9718351200 | |||
| 10 | - Cover | 3162047700 | |||
| 12 | - Screw | 0147132500 | |||
| 13 | - Shaft | 3162155100 | |||
| 14 | - Washer | 3162158100 | |||
| 15 | - Ball Bearing | 0502222900 | |||
| 16 | - Pulley Wheel | 9718351300 | |||
| 17 | - Spring Washer | 0333213000 | |||
| 18 | - Stop Screw | 3162009700 | |||
| 19A | - Worm Shaft, Five Start | 3162166400 | |||
| 20 | - Ball Bearing | 0502111000 | |||
| 21 | - Seal Ring | 0666443200 | |||
| 23 | - Gear Housing | 3162166300 | |||
| 24 | - Gasket | 0653111500 | |||
| 25 | - Plug | 0686370300 | |||
| 26 | - Ball Bearing | 0502210700 | |||
| 27 | - Cover | 3162048600 | |||
| 29 | - Screw | 0147132500 | |||
| 30 | - Ball Bearing | 0502110900 | |||
| 32 | - Nut | 0266111600 | |||
| 33 | - Ball Bearing | 0504210500 | |||
| 34 | - Washer | 0301220400 | |||
| 35 | - Split Pin | 0111144900 | |||
| 36 | - Nut | 3162048400 | |||
| 37 | - Cover | 3162048500 | |||
| 39 | - Screw | 0147132500 | |||
| 40 | - Bolt | 3162106800 | |||
| 41 | - Clamp | 3162119900 | |||
| 42 | - Circlip Int. |
