VK65 - Vikay Rock Drill

availability: This product is not available in the selected currency.
  • Nothing

Description

Rock Drill Vk-65

Vikay is a global supplier of Vikay Pneumatic Rock Drill Vk-65 for Opencast Mining Equipment from India .

View PDF

The Most Popular and powerful Pneumatic Rock Drill in World. It has low air consumption and a very high drilling rate in relation to weight. Basically used for Blast Hole Drilling, Tunneling, Quarry Works and Construction sites.

It is capable of drilling 27 - 40 mm dia hole with H - 22 integral / extension steel up to depth of 6 Meter.

This Rock Drill is made of Top quality raw material, valves, piston & other moving spares, are made from shock resistance Tool Steel and then heat treated to specified rockwell hardness for toughness and durability. Back head, Cylinder, Front Head & retainers are made from Carbonizing grade of Drop Forged, Specially hard Alloy Steel.

Salient Features-

  • Light Weight
  • High Torque
  • Large Sliding Face
  • High Penetration in hard & soft rock
  • Low spare parts consumption

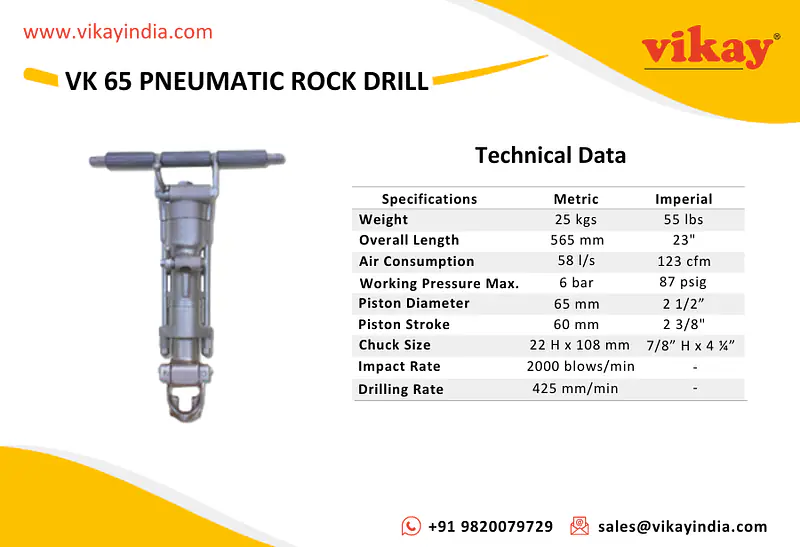

Technical Data

Model VK-65
Weight 25 Kgs 55 lbs
Overall Length 565 mm 23
Air Consumption 58 l/s 123 cfm
Working Pressure Max. 6 bar 87 psig
Piston Diameter 65 mm 2
Piston Stroke 60 mm 2 3/8
Chuck Size 22 H x 108 mm 7/8 H x 4
Impact Rate 2000 blows/min
Drilling Rate 425 mm / min

Since approvement are made from time to time, the illustration and specifications are subject to change without notice
