VK 11 Vikay Paving Breaker Parts

Name: VK 11 Vikay Paving Breaker Parts
SKU: VK11Parts_Nothing
Availability: InStock

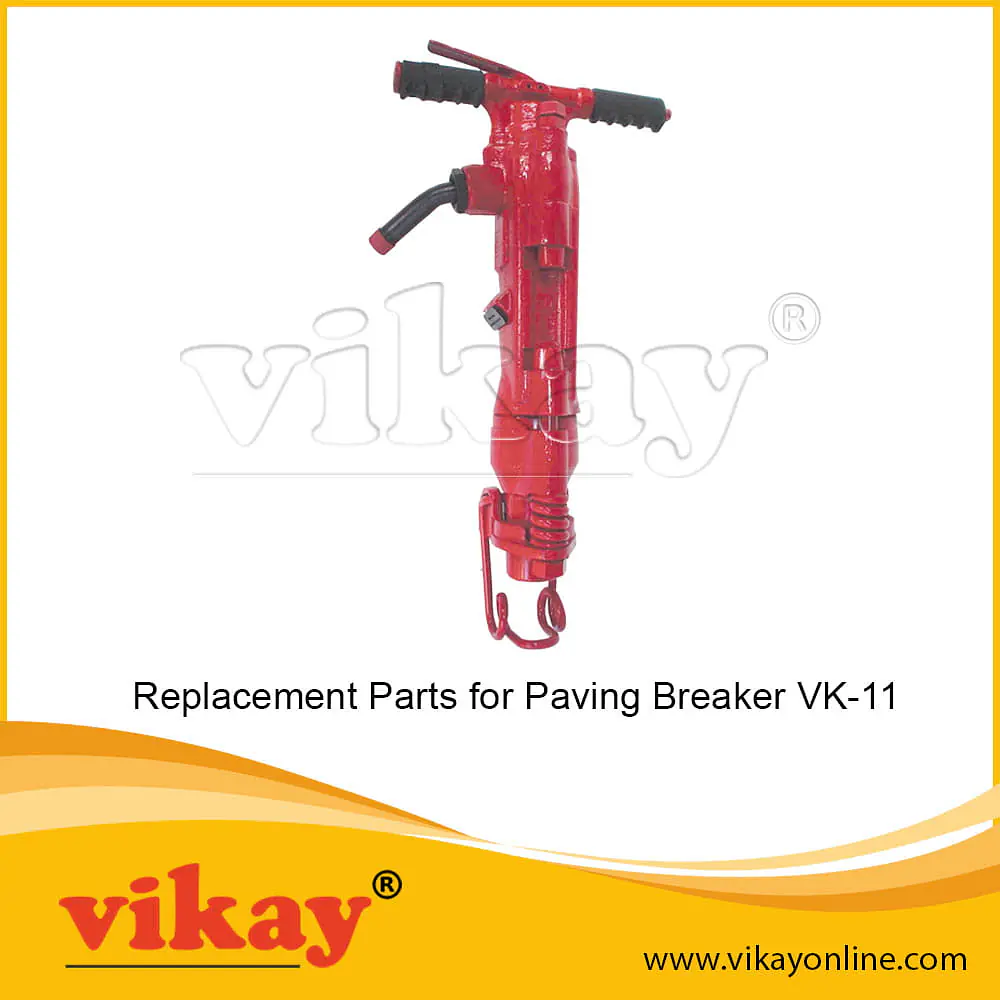

Paving Breaker VK-11 Replacement Parts

Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Vikay Paving Breaker Model VK-11 from India

Product

VK-11 Paving Breaker

No.	Description	Ref. Part No.
1	Steel Retainer	R005727
2	Steel Support	R005728
3	Front Head 1 1/4" Hex A/F x 6"L)	R005724
4	Anvil Block	R075186
5	Anvil Block Bushing	R075187
6	Cylinder	R075185
7	Piston	R000040
8	Nipple (1" NPT x 3/4" BSPF)	F572693
9	Throttle Valve Spring	R005717
10	Throttle Valve Retaining Ring	R098369
11	Throttle Valve Seat	R098368
12	Throttle Valve	F37560
13	Back Head	F27991
14	Oil Regulating Plug	R004976
15	Throttle Valve lever	R005712
16	Front head bolt Nut	R005721
17	Front Head bolt spring	R005729
18	Front Head Bolt	R005684
19	Back Head Bolt	R075189
20	Back Cylinder Spacer	R075193
21	Valve	R075190
22	Inside Valve Bushing	R075191
23	Valve Bearing Stem	R075192
24	Back head bolt Nut (male)	R005689
25	Grover Lock Pin	R133433
26	Back head bolt nut(female)	R005689
27	Oil Plug	R000560
28	Handle Rubber	R005716
--	Back head compl. Assly	R007703
	consist of Illustration No.
	13,14,15,25,27 & 28
--	Throttle Valve Assly.	R045373
	consist of Illustration No.
	10, 11 & 12
