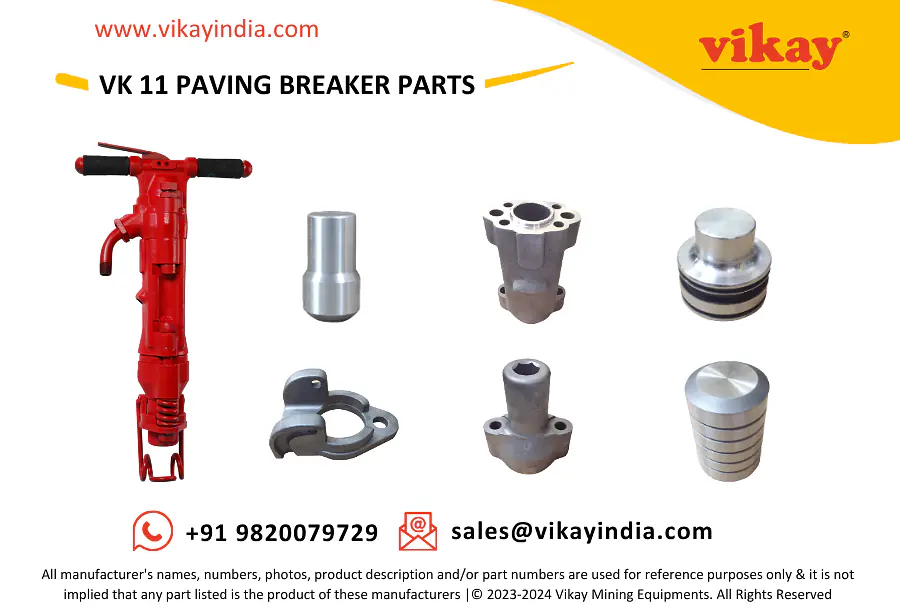

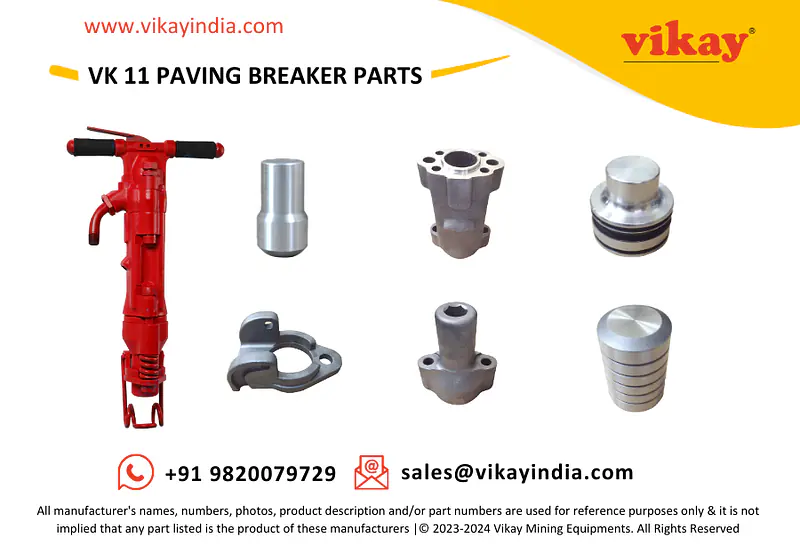

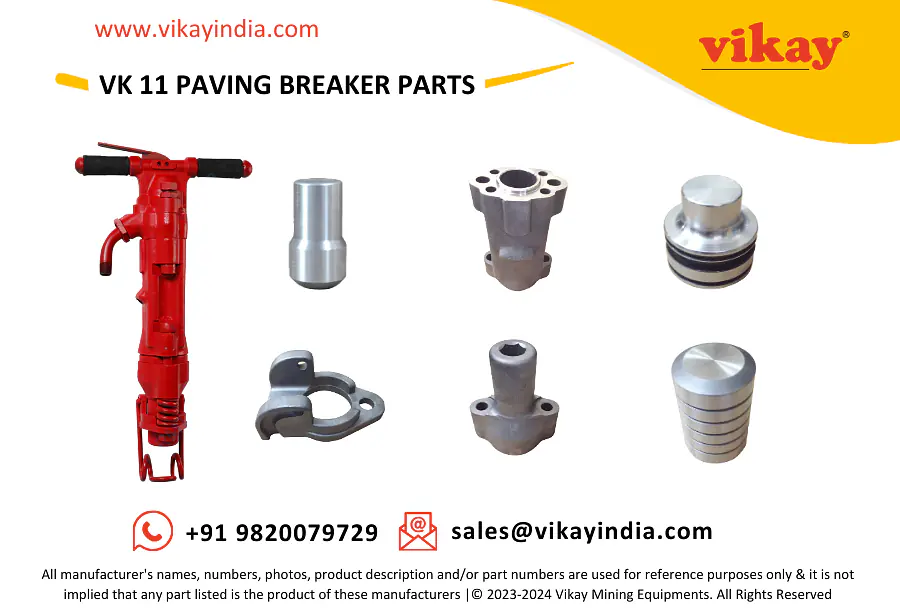

VK 11 Vikay Paving Breaker Parts
Regular price
₹0.00
VK 11 Vikay Paving Breaker Parts
Regular price
₹0.00
DESCRIPTION
Paving Breaker VK-11 Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Vikay Paving Breaker Model VK-11 from India
Product
- Page 1
VK-11 Paving Breaker
| No. | Description | Ref. Part No. |
| 1 | Steel Retainer | R005727 |
| 2 | Steel Support | R005728 |
| 3 | Front Head 1 1/4" Hex A/F x 6"L) | R005724 |
| 4 | Anvil Block | R075186 |
| 5 | Anvil Block Bushing | R075187 |
| 6 | Cylinder | R075185 |
| 7 | Piston | R000040 |
| 8 | Nipple (1" NPT x 3/4" BSPF) | F572693 |
| 9 | Throttle Valve Spring | R005717 |
| 10 | Throttle Valve Retaining Ring | R098369 |
| 11 | Throttle Valve Seat | R098368 |
| 12 | Throttle Valve | F37560 |
| 13 | Back Head | F27991 |
| 14 | Oil Regulating Plug | R004976 |
| 15 | Throttle Valve lever | R005712 |
| 16 | Front head bolt Nut | R005721 |
| 17 | Front Head bolt spring | R005729 |
| 18 | Front Head Bolt | R005684 |
| 19 | Back Head Bolt | R075189 |
| 20 | Back Cylinder Spacer | R075193 |
| 21 | Valve | R075190 |
| 22 | Inside Valve Bushing | R075191 |
| 23 | Valve Bearing Stem | R075192 |
| 24 | Back head bolt Nut (male) | R005689 |
| 25 | Grover Lock Pin | R133433 |
| 26 | Back head bolt nut(female) | R005689 |
| 27 | Oil Plug | R000560 |
| 28 | Handle Rubber | R005716 |
| -- | Back head compl. Assly | R007703 |
| consist of Illustration No. | ||
| 13,14,15,25,27 & 28 | ||
| -- | Throttle Valve Assly. | R045373 |
| consist of Illustration No. | ||
| 10, 11 & 12 |
