Suction Valve Assembly (Second Stage) 1903256980 Replacement
Regular price
₹0.00
Suction Valve Assembly (Second Stage) 1903256980 Replacement
Regular price
₹0.00
DESCRIPTION
Suction Valve Assembly (Second Stage) 1903256980 Replacement
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Suction Valve Assembly (Second Stage) 1903256980 for Chicago Pneumatic Air Compressor from India.

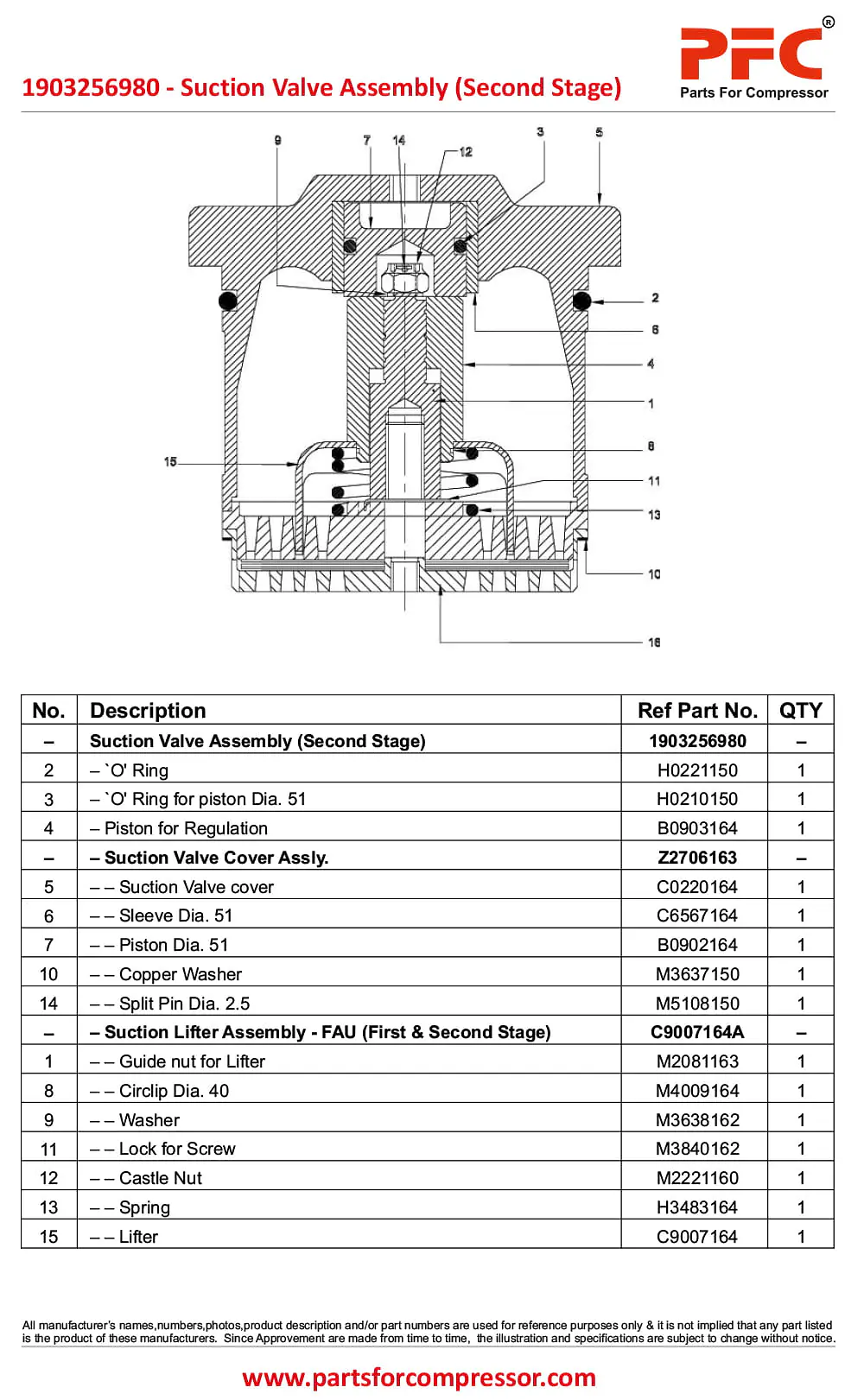

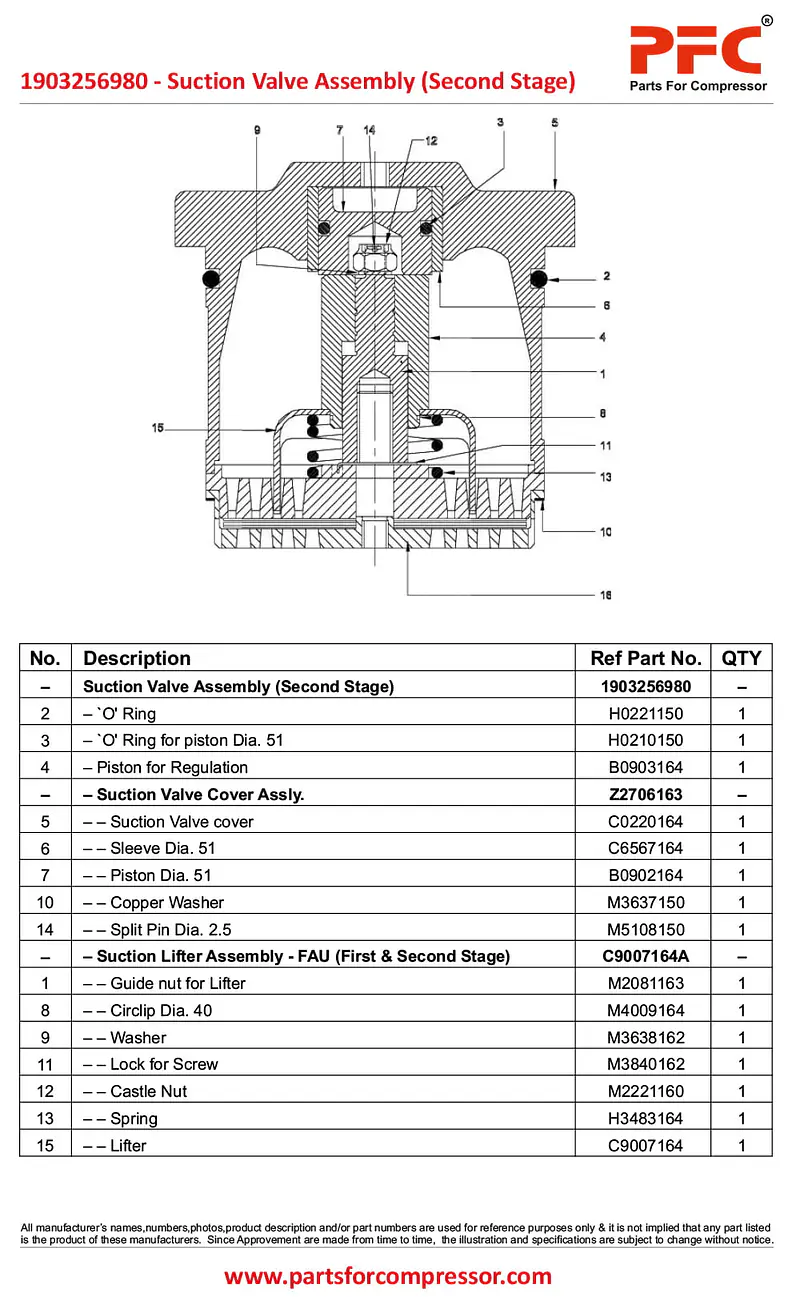

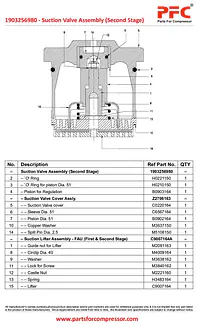

Suction Valve Assembly (Second Stage) 1903256980
| Sr. No. | Description | Part Number | QTY |
| – | Suction Valve Assembly (Second Stage) | 1903256980 | – |
| 2 | – `O' Ring | H0221150 | 1 |
| 3 | – `O' Ring for piston Dia. 51 | H0210150 | 1 |
| 4 | – Piston for Regulation | B0903164 | 1 |
| – | – Suction Valve Cover Assly. | Z2706163 | – |
| 5 | – – Suction Valve cover | C0220164 | 1 |
| 6 | – – Sleeve Dia. 51 | C6567164 | 1 |
| 7 | – – Piston Dia. 51 | B0902164 | 1 |
| 10 | – – Copper Washer | M3637150 | 1 |
| 14 | – – Split Pin Dia. 2.5 | M5108150 | 1 |
| – | – Suction Lifter Assembly - FAU (First & Second Stage) | C9007164A | – |
| 1 | – – Guide nut for Lifter | M2081163 | 1 |
| 8 | – – Circlip Dia. 40 | M4009164 | 1 |
| 9 | – – Washer | M3638162 | 1 |
| 11 | – – Lock for Screw | M3840162 | 1 |
| 12 | – – Castle Nut | M2221160 | 1 |
| 13 | – – Spring | H3483164 | 1 |
| 15 | – – Lifter | C9007164 | 1 |
