DESCRIPTION

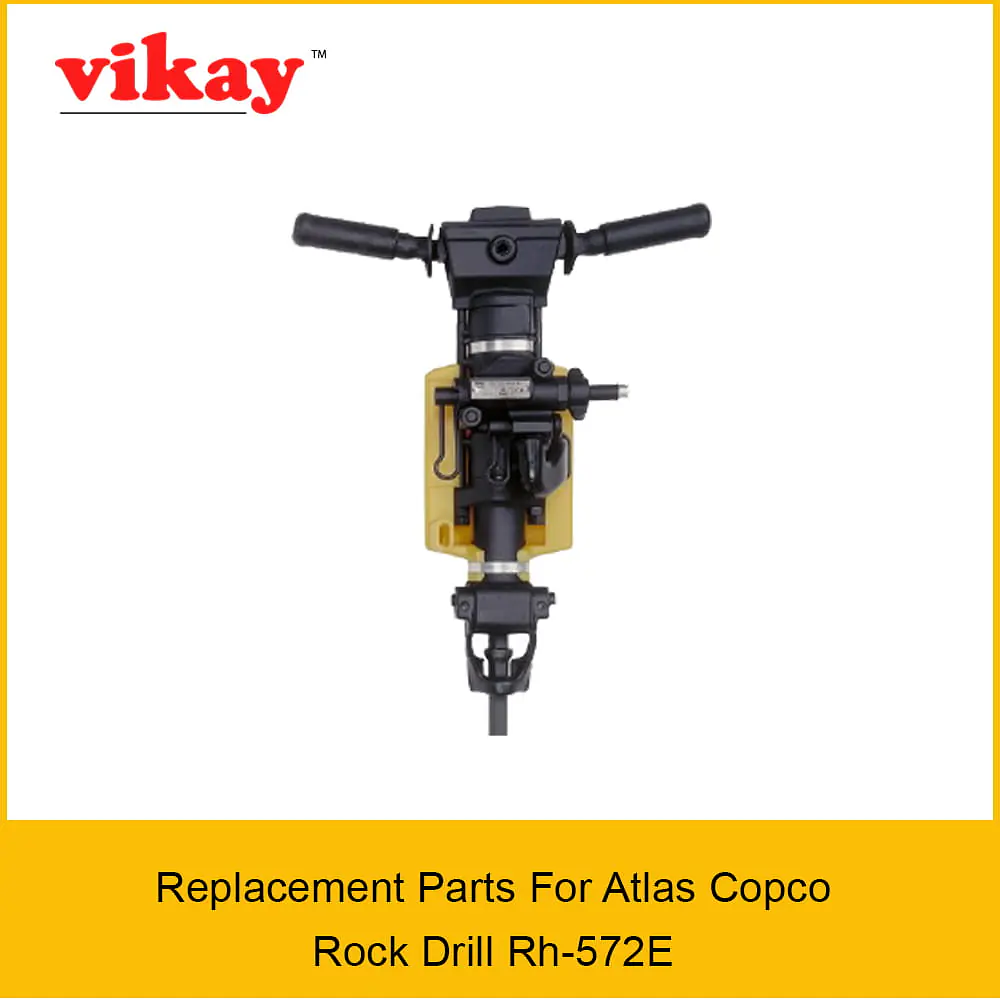

Rh-572E Rock Drill Atlas Copco Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Atlas Copco Rock Drill Rh-572E from India

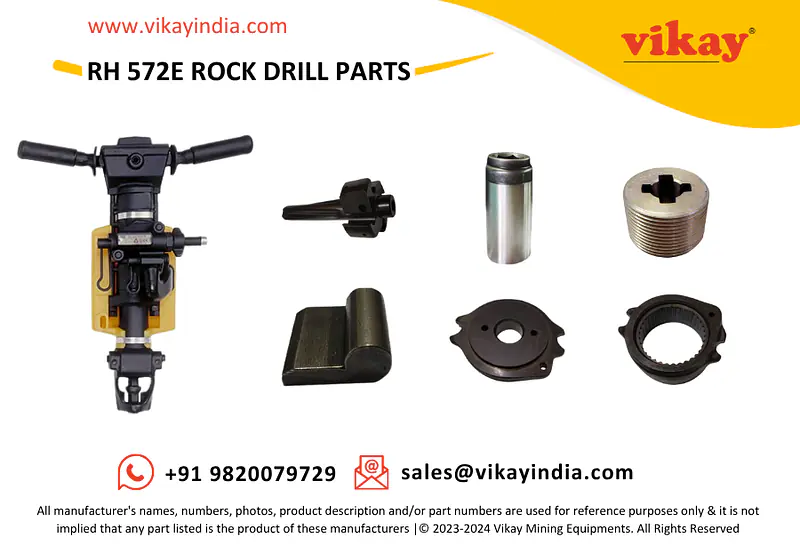

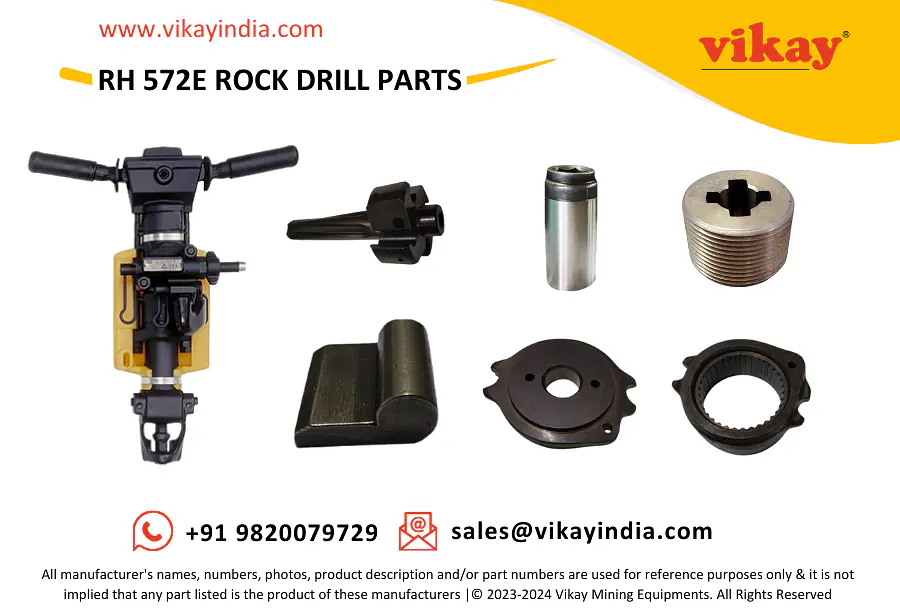

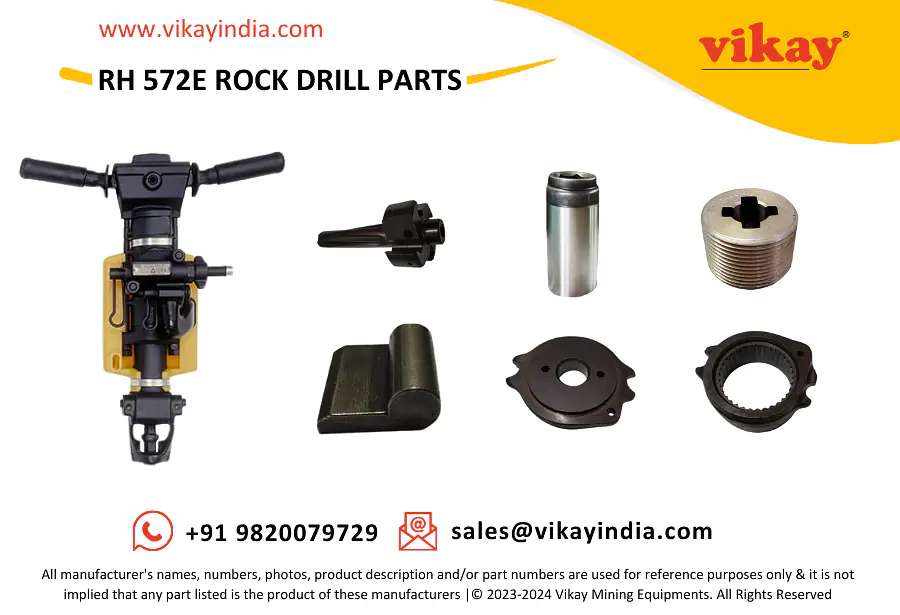

Rh-572E Rock Drill Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Drill steel retainer | 3121085100 | |
| 2 | Retainer pin | 3121085200 | |
| 3 | Tension pin | 0108339200 | |
| 4 | Rubber buffer | 3121003000 | |
| 5 | Buffer plate | 3121002900 | |
| 6 | Front head | 3111014100 | |
| 7 | Nut | 0266120800 | |
| 8 | Rotation chuck, complete (9-10) | 3111018580 | |
| 9 | - Rotation Chuck Hex 22 x 108 mm | --- | |
| 10 | - Tool bushing Hex 22 x 108 mm | 3111018600 | |
| 11 | Intermediate part | 3111014300 | |
| 12 | Piston, complete (13-14) | 3111016280 | |
| 13 | - Piston | --- | |
| 14 | - Rifle nut | 3100929908 | |
| 15 | Cylinder | 3106082500 | |
| 16 | Spring pin | 0108123800 | |
| 17 | Main valve | 3101158601 | |
| 18 | Throttle housing, complete (19-25) | 3115116381 | |
| 19 | - Throttle Housing | --- | |
| 20 | - Hexagon Nipple | 3115192401 | |
| 21 | - Throttle Valve | 3115119000 | |
| 22 | - Lever | 3115119100 | |
| 23 | - Lever | 3101366400 | |
| 24 | - Coil Spring | 3001395701 | |
| 25 | - Exhaust Valve | 3101498800 | |
| 26 | Nut | 3000134500 | |
| 27 | Lock washer | 0333313900 | |
| 28 | Bolt | 3100019406 | |
| 29 | Hose nipple | 3115154300 | |
| 30 | Wing nut | 9000033800 | |
| 31 | Cover | 3106082700 | |
| 32 | Rifle bar | 3111014500 | |
| 33 | Pawl, complete (34-36) | 3115920090 | |
| 34 | - Pressure spring | 3100914002 | |
| 35 | - Pawl pin | 3100964101 | |
| 36 | - Pawl | 3101315900 | |
| 37 | Ratchet ring | 3115116700 | |
| 38 | Back head | 3115188500 | |
| 39 | Rubber packing | 3000012100 | |
| 40 | Spring pin | 0108169037 | |
| 41 | Handle | 3115188600 | |
| 42 | Rubber sleeve | 3310085200 | |
| 43 | Air flushing tube | 3111014000 | |
| 44 | Seal washer | 3100934100 | |
| 45 | Side bolt | 3115189000 | |
| 46 | Plug | 3115188800 | |
| 47 | Buffer | 3115247900 | |
| 48 | Spring | 3115188900 | |
| 49 | Silencer, complete (50-53) | 3115248581 | |
| 50 | - Silencer | --- | |
| 51 | - Hose clamp | 0347611400 | |
| 52 | - Hose clamp | 0347611600 | |
| 53 | - Connecting pipe | 3115114100 | |
| 54 | Rubber washer | 3115247800 | |
| 55 | Screw | 0244414400 | |
| 56 | Data Plate | --- | |
| 57 | Label | 0690135600 |
