DESCRIPTION

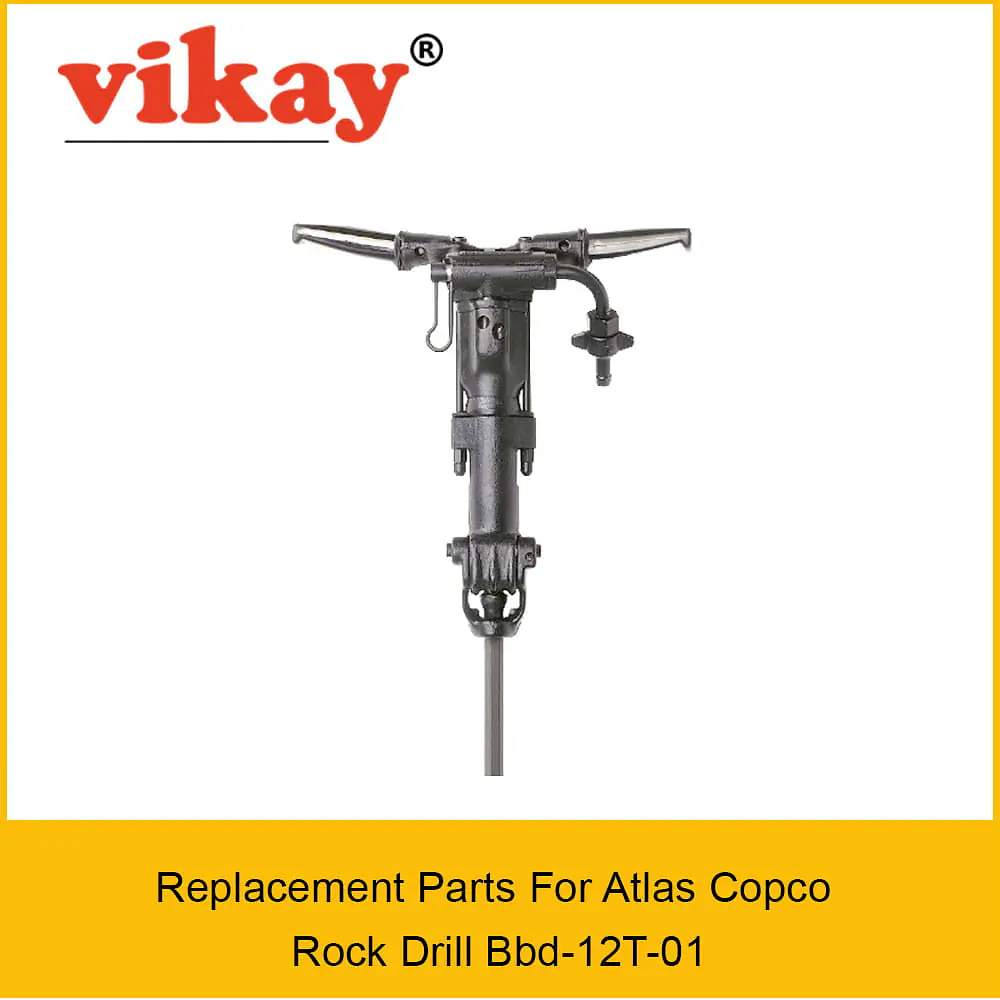

Bbd-12T01 Light Weight Rock Drill Atlas Copco Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Atlas Copco Light Weight Rock Drill Bbd-12T-01 from India
Product
- Page 1

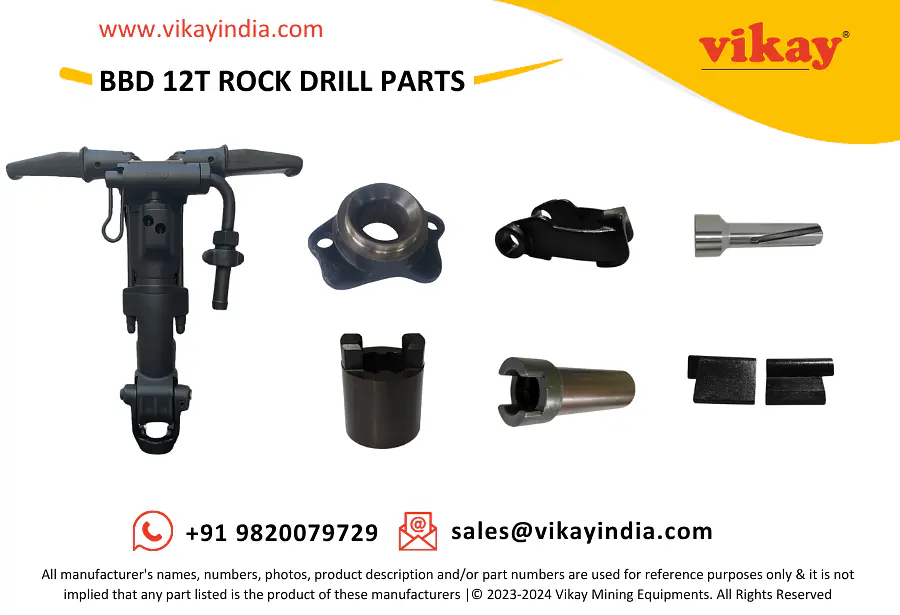

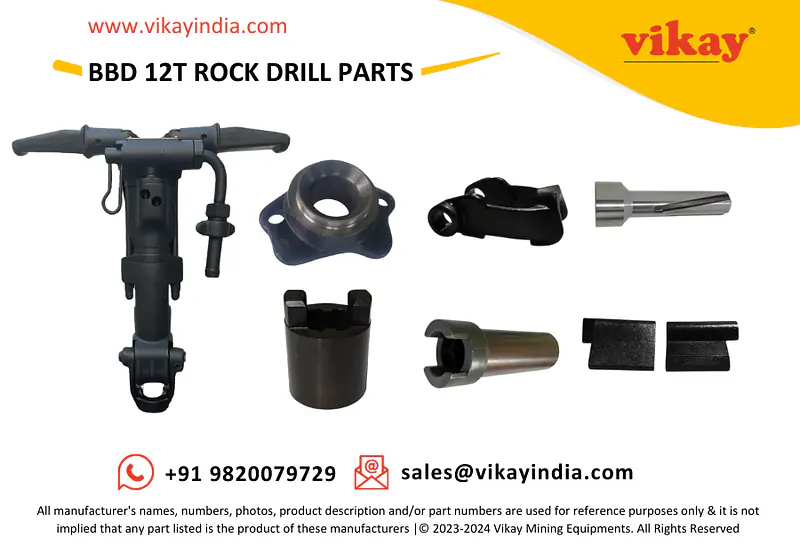

Bbd-12T-01 Rock Drill Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Drill retainer | 3115247500 | |
| 2 | Retainer pin | 3115206800 | |
| 3 | Slotted spring pin | 0108135900 | |
| 4 | Rubber buffer | 3111005700 | |
| 5 | Buffer plate | 3111005600 | |
| 6 | Front head | 3111005300 | |
| 7 | Cap nut | 3111006200 | |
| 8 | Conical spring | 3111002300 | |
| 9 | Pawl | 3111002000 | |
| 10 | Drill chuck Hexagon 22 x 108 mm | 3111006600 | |
| 11 | Driver | 3111002400 | |
| 12 | Ratchet wheel | 3111001900 | |
| 13 | Intermediate part | 3111001700 | |
| 14 | Piston | 3111005000 | |
| 15 | Cylinder | 3111001500 | |
| 16 | Cover, complete (17-19) | 3111004780 | |
| 17 | - Cover | --- | |
| 18 | - Bushing | 3111004800 | |
| 19 | - Pin | 0108324100 | |
| 20 | Main valve | 3111004900 | |
| 21 | Throttle housing | 3115209600 | |
| 22 | Valve | 3115196700 | |
| 23 | Throttle lever | 3115208600 | |
| 24 | Inlet nipple | 3111004400 | |
| 25 | Adapter | 3111004300 | |
| 26 | Adapter | 3000582502 | |
| 27 | Hose nipple | 3115154300 | |
| 28 | Wing nut | 9000033800 | |
| 29 | Handle bracket | 3115081100 | |
| 30 | Handle, complete (31-32) | 3310056980 | |
| 31 | - Handle | --- | |
| 32 | - Bushing | 3310057200 | |
| 33 | Pin | 0108136000 | |
| 34 | Side bolt | 3111006100 | |
| 35 | Gasket | 3000012100 | |
| 36 | Flushing tube | 3111004500 | |
| 37 | O Ring | 0663212400 | |
| 38 | Plug | 3111004600 | |
| 39 | Data Plate | --- | |
| 40 | Safety label | 3310160200 |
