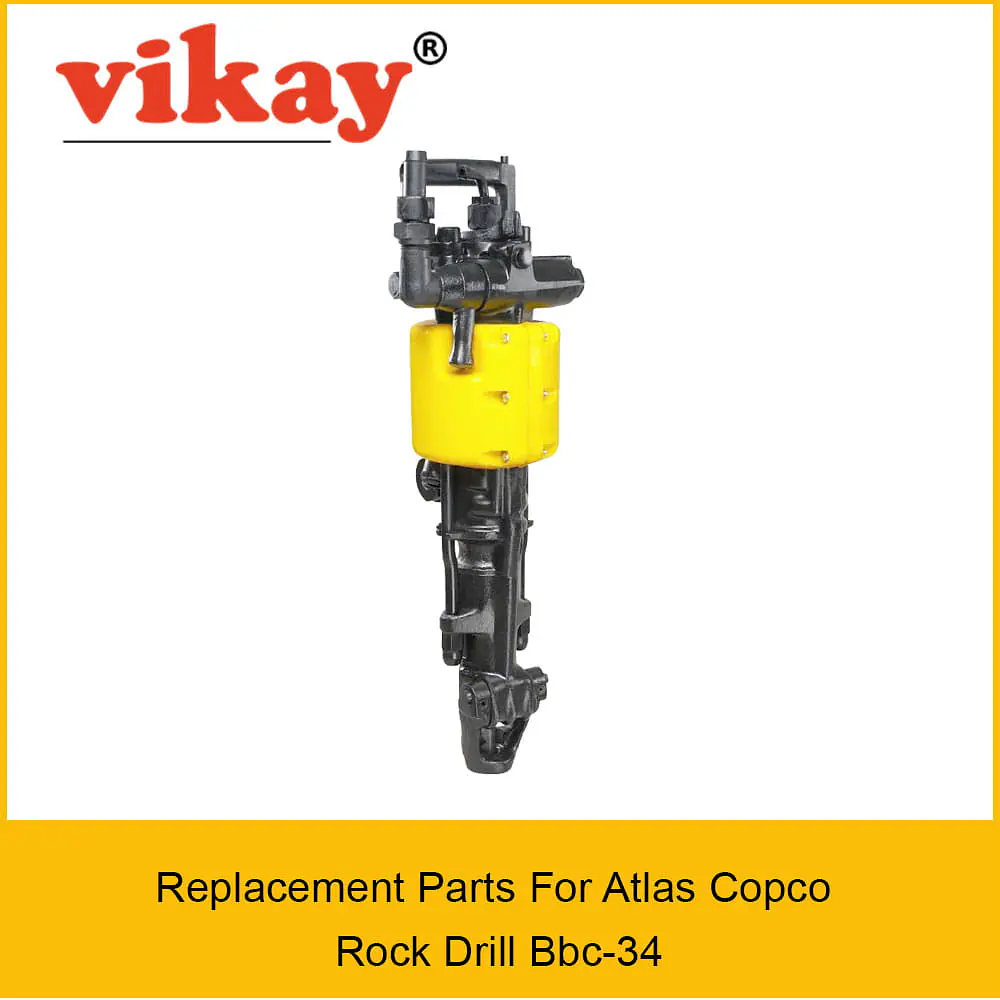

Bbc-34 DSI Rock Drill Atlas Copco Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Atlas Copco DSI Rock Drill Bbc-34 from India.
Product
- Page 1

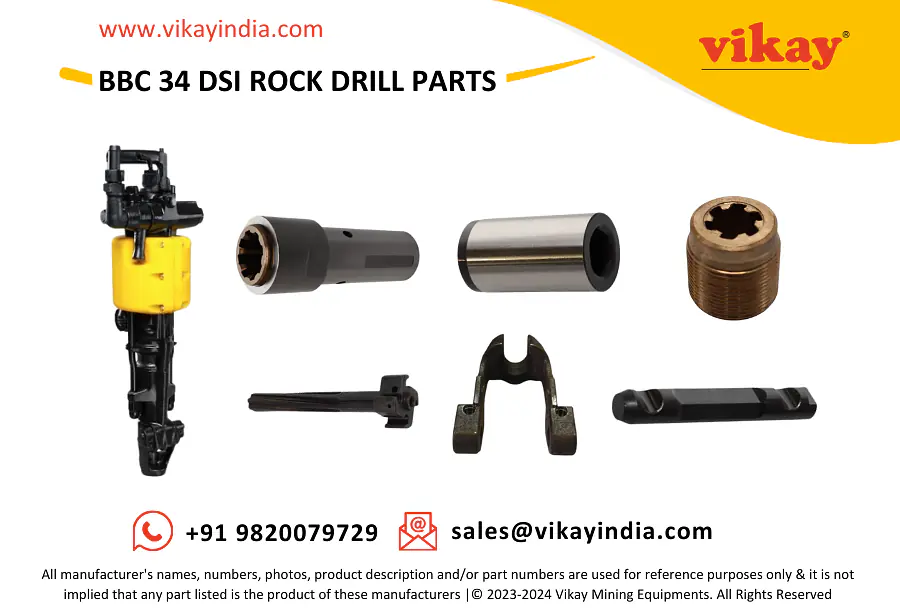

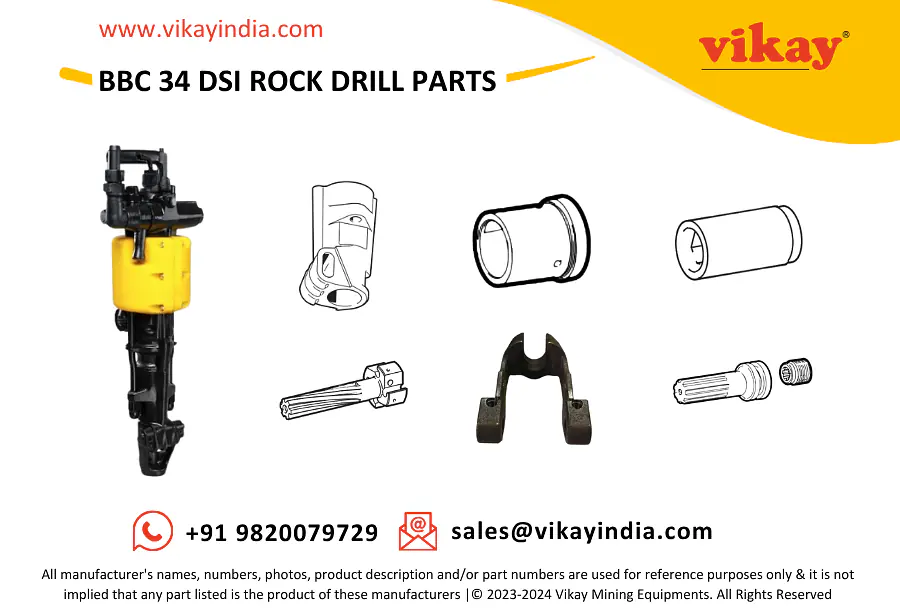

Bbc-34 Rock Drill Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Front head | 3121015400 | |
| 2 | Drill steel retainer | 3121085100 | |
| 3 | Spring pin | 0108339200 | |
| 4 | Retainer pin | 3115292500 | |
| 5 | Buffer plate | 3121002900 | |
| 6 | Buffer | 3121003000 | |
| 7 | Side bolt nut | 3121087200 | |
| 8 | Rotation chuck set (9-11) | 3121082680 | |
| 9 | - Rotation chuck | ||
| 10 | - Rotation chuck bushing 22 x 108 mm | 3121082400 | |
| 11 | - Chuck nut | 3115122000 | |
| 13 | Intermediate part | 3121075100 | |
| 14 | Bushing | 3121075200 | |
| 15 | Cylinder | 3121075500 | |
| 16 | Adapter | 3115299200 | |
| 17 | Pin | 0101127400 | |
| 18 | Nut | 3115299300 | |
| 19 | Plug | 3121070700 | |
| 20 | Piston set (21-22) | 3121076780 | |
| 21 | - Piston | ||
| 22 | - Rifle nut | 3121075400 | |
| 23 | Rifle bar bearing | 3121075600 | |
| 24 | Spring pin | 0108131900 | |
| 25 | Valve casing | 3121075700 | |
| 26 | Main valve | 3121075800 | |
| 27 | Spring pin | 0108132200 | |
| 29 | O Ring | 0663612000 | |
| 30 | Rifle bar | 3121062600 | |
| 31 | Washer | 3121062700 | |
| 32 | Pawl, complete (33-35) | 3115920090 | |
| 33 | - Pawl | 3101315900 | |
| 34 | - Pressure spring | 3100914002 | |
| 35 | - Pawl pin | 3100964101 | |
| 36 | Valve, complete (37-39) | 3121072680 | |
| 37 | - Valve | --- | |
| 38 | - Valve liner | --- | |
| 39 | - O Ring | 0663212400 | |
| 40 | Back head, complete (41,57-61, 62, 70-90) | 3121059784 | |
| 41 | Throttle valve, complete (42, 45-46) | 3121048981 | |
| 42 | Throttle valve with inlet plug, complete (43-44) | 3121048980 | |
| 43 | - Inlet Plug | ||
| 44 | - Throttle Valve | ||
| 45 | Pin | ||
| 46 | Ball | 0517110800 | |
| 47 | O Ring | 0663212800 | |
| 48 | Inlet nipple for air | 3121052100 | |
| 49 | Air strainer | 3121051300 | |
| 50 | O Ring | 0663213500 | |
| 51 | O Ring | 0663213200 | |
| 52 | Plug | 3121049300 | |
| 53 | Pin | 0101127400 | |
| 54 | Ratchet pin | 3121049000 | |
| 55 | Spring | 3121049100 | |
| 56 | Plug | 3121049200 | |
| 57 | Pin | 3121059500 | |
| 58 | Pin | 3121055800 | |
| 59 | Spring | 3121056400 | |
| 60 | Spring | 3121073700 | |
| 61 | Ball | 0517141400 | |
| 62 | Valve housing, complete (63, 66-69) | 3121049581 | |
| 63 | Valve body, complete (64-65) | 3121071380 | |
| 64 | - Valve body | ||
| 65 | - O Ring | 0663211200 | |
| 67 | Pressure spring | 3121049700 | |
| 68 | O Ring | 0663212200 | |
| 69 | Plug | 3121071400 | |
| 70 | Valve seat | 3121073600 | |
| 71 | Water strainer | 3121050100 | |
| 72 | O Ring | 0663212500 | |
| 73 | Adapter | 3121071600 | |
| 74 | Packing | 3100965300 | |
| 75 | Plug | 3115278600 | |
| 76 | Spring pin | 0108129800 | |
| 77 | O Ring | 0663612900 | |
| 78 | Flushing tube bushing | 3121073100 | |
| 79 | O Ring | 0663213200 | |
| 80 | Lever | 3121055700 | |
| 81 | O Ring | 0663212200 | |
| 82 | O Ring | 0663918400 | |
| 83 | Plug | 3115278500 | |
| 84 | Inlet nipple | 3121085400 | |
| 85 | Adapter | 3121085700 | |
| 86 | Air flushing tube | 3115278400 | |
| 88 | Guide ring | 3121059200 | |
| 89 | Stop screw | 3121060400 | |
| 90 | Valve pin | 3121058600 | |
| 91 | Pipe | 3121067300 | |
| 92 | Spring | 3121072500 | |
| 93 | Washer | 3121072400 | |
| 94 | Valve pin | 3121067500 | |
| 95 | Packing | 3121004300 | |
| 96 | Nut | 3121089400 | |
| 97 | Side bolt | 3121076000 | |
| 98 | Handle | 3121067400 | |
| 99 | Wing nut | 9000033900 | |
| 100 | Hose nipple | 9000032600 | |
| 101 | Adapter | 3000582503 | |
| 102 | Spring pin | 3115141700 | |
| 103 | Ratchet box | 3121089800 | |
| 104 | Silencer, complete (105-108) | 3115299490 | |
| 105 | - Cover, right | 3115299400 | |
| 106 | - Cover, left | 3115299500 | |
| 107 | - Screw | 0211125503 | |
| 108 | - Nut | 0261210800 | |
| 109 | Data Plate | --- | |
| 110 | Safety label | 3310160200 |
