DESCRIPTION

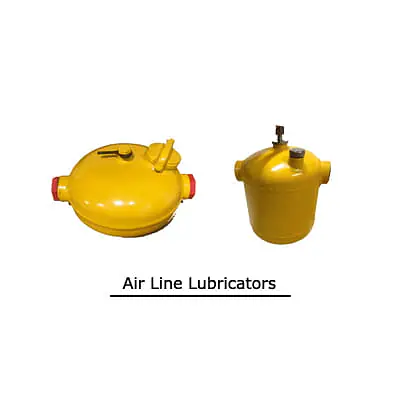

Air Line Lubricators
Vikay Mining Equipments is a global supplier of Air Line Lubricators - 1.3 Ltr Oil Lubricator VK 30 Vikay, 5 Ltr Oil Lubricator VK 40 Vikay from India.

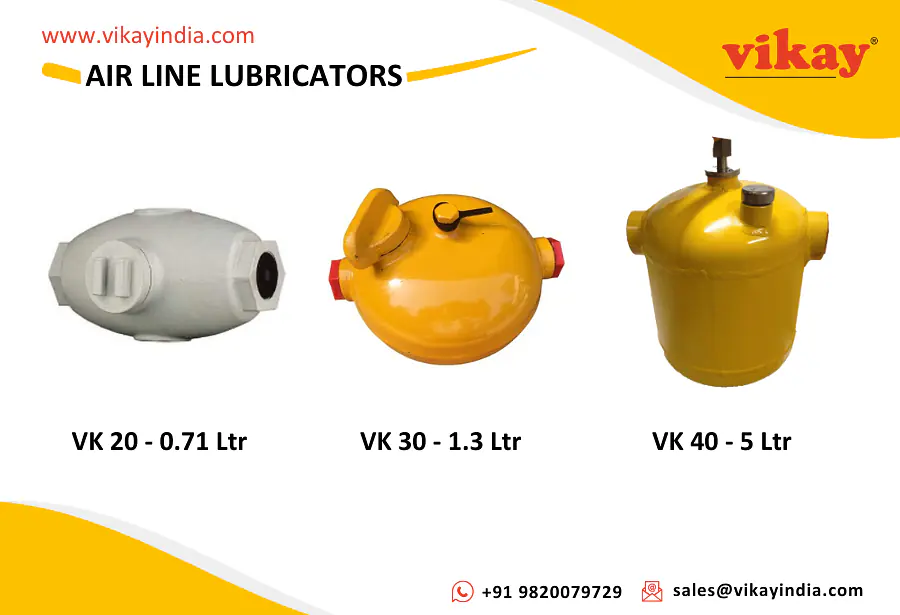

0.71 Ltr Oil Lubricator VK 20
Technical Data
| Specifications | Metric | Imperial |
| Weight Empty | 3.5 kg | 8 lb |
| Weight Full | 5.5 kg | 11.5 lb |
| Length | 200 mm | 8" |
| Oil Volume | 0.71 Ltr | 0.19 Gallon |
| Safety Fill Cap Diameter | 48 mm | 1 7/8" |
| Air Flow | 48 I/s | 102 Cfm |
| Hose Diameter | 25 mm | 1" |
| Max Air Pressure | 17.5 Bar | 250 PSI |
1.3 Ltr Oil Lubricator VK 30
Technical Details
| Description | Metric | Imperial |
| Capacity Air Flow | 1.5 - 8.0 m3/min | 53-282 |
| Oil Volume | 1.3 Ltrs | 0.29 Gallons |
| Weight | 3.0 Kgs. | 6.6 lbs |
| Max. Working Pressure | 20 bar | 290 psi |
| Hose Dia Inside | 25 mm | 1" |
| Connecting Thread | 1" B.S.P. | |
| OEM Part Number | 8202510205 |
5 Ltr Oil Lubricator VK 40
Technical Details
| Description | Imperial |
| Pressure.Max. in p.s.i | 150 |
| Air-Flow.Max. in C.F.M | 600 |
| End Connection in B.S.P | 1 1/2" |
| Hight Approx. in mm | 400 |
| Outside Dia in mm | 209 |
| Oil Volume | 5 Ltrs |
