102 mm Drill Steel Support Comp.
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Drill Steel Support Comp. With Plate and Bolt 102 mm Replacement
Vikay is a global supplier of new aftermarket replacement parts - Drill Steel Support Comp. With Plate and Bolt 102 mm Replacement for Atlas Copco Wagon Drill Bvb-25 from India.
Product
- Page 1

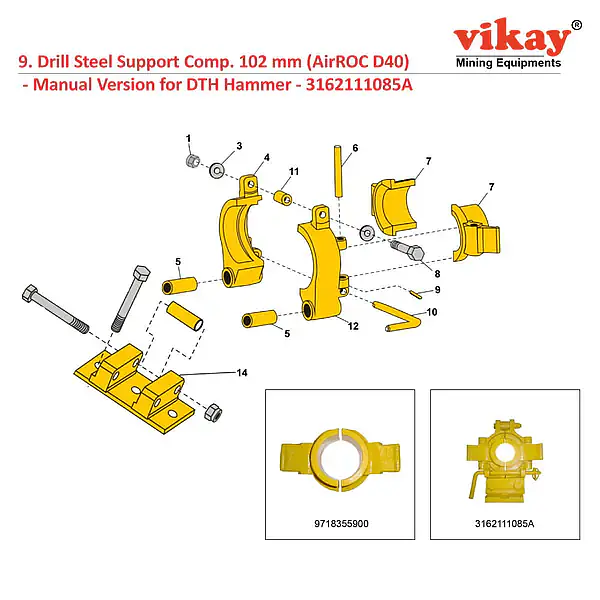

Drill Steel Support Comp. With Plate and Bolt 102 mm Replacement
| No. | Description | Modified | Ref. Part No. | QTY | |
| - | Drill Steel Support Comp. With Plate & Bolt (102mm) ROC D40 | 3162111085A | 1 | ||
| 1 | - Nut (Modified) | * | M100190 | 1 | |
| 3 | - Washer | 3161014300 | 1 | ||
| 4 | -- Support Right | 1 | |||
| 5 | - Bushing | 3162104800 | 2 | ||
| 6 | - Shaft | 3162105400 | 2 | ||
| 7 | - Insert For 102mm (4â€) | 9718355900 | 2 | ||
| 8 | - Screw | 0147148900 | 1 | ||
| 9 | - Spring Pin | 0108130100 | 2 | ||
| 10 | - Locking Rod Complete (Modified) | * | M100198 | 1 | |
| 11 | - Bushing | 3162111700 | 1 | ||
| 12 | -- Support Left | 1 | |||
| 13A | -Drill Still Support - 102mm (") | 3162111085 | 1 | ||
| 14 | - Drill Tube Support Attachment (See Page No. 25) | 1 |
Details
- type: product
- SKU: BVB2508
