DESCRIPTION
Valve Assemblies - Bare Compressor Ingersoll Rand Type 30 Model 15T
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Valve Assemblies - Bare Compressor Ingersoll Rand Type 30 Model 15T from India.
Product
- Page 1

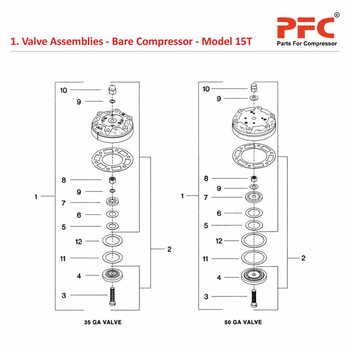

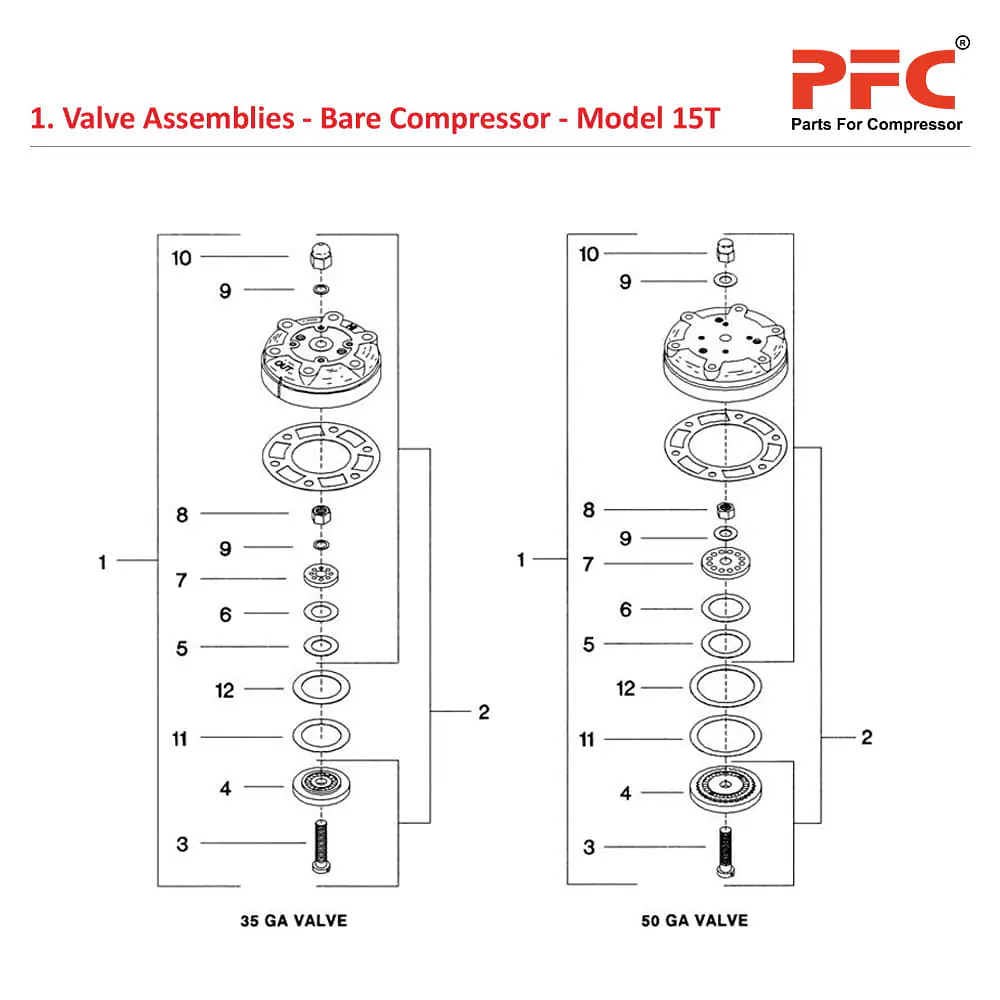

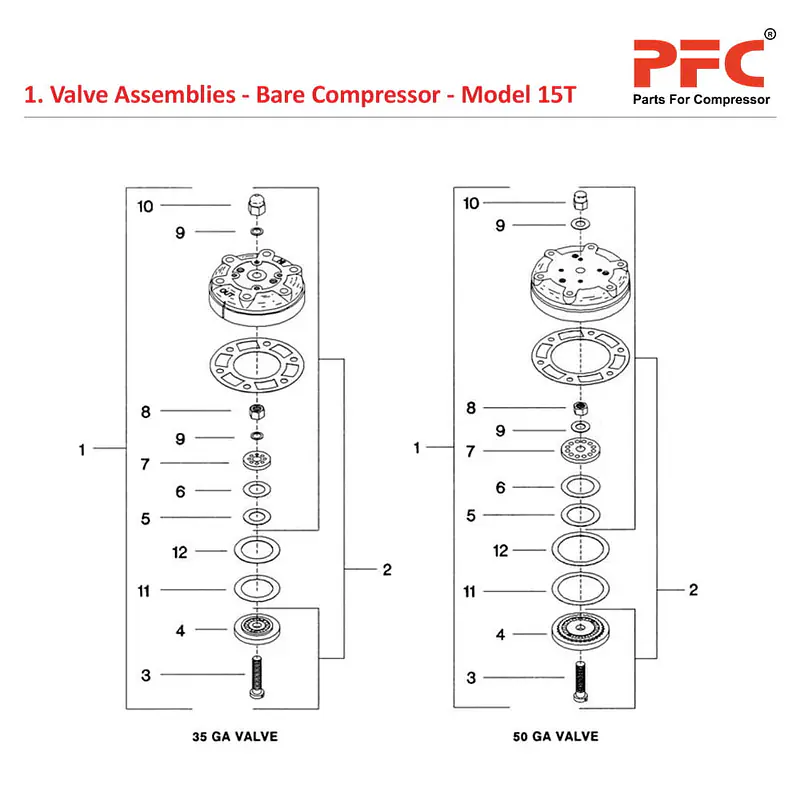

1. Valve Assembly
35 GA Valve
| Sr.No | Ref. Part Number | Description |
| 1-1 | 37004827 | Valve complete 35 GA |
| 1-1 | - | Valve complete 50 GA |
| 1-2 | 32156713 | * Assembly valve |
| 1-3 | 30220925 | * * Bolt valve |
| 1-4 | 30217608 | * * Seat, valve - discharge |
| 1-5 | 30215941 | * * Plate valve - discharge |
| 1-6 | 30221576 | * * Spring, valve - discharge |
| 1-7 | 30218994 | * * Plate stop - discharge |
| 1-8 | 95076808 | * * Nut , Hex |
| 1-9 | 32158644 | * * Washer, belleville |
| 1-10 | 30287643 | * * Nut , Acorn |
| 1-11 | 30221501 | * * Spring, valve - inlet |
| 1-12 | 30181499 | * * Plate valve - inlet |
50 GA Valve
| Sr.No | Ref. Part Number | Description |
| 1-1 | - | Valve complete 35 GA |
| 1-1 | 37004843 | Valve complete 50 GA |
| 1-2 | 32156739 | * Assembly valve |
| 1-3 | 30279897 | * * Bolt valve |
| 1-4 | 30229538 | * * Seat, valve - discharge |
| 1-5 | 30181499 | * * Plate valve - discharge |
| 1-6 | 30221501 | * * Spring, valve - discharge |
| 1-7 | 30218978 | * * Plate stop - discharge |
| 1-8 | 95076816 | * * Nut , hex |
| 1-9 | 37092897 | * * Washer, belleville |
| 1-10 | 30287650 | * * Nut , Acorn |
| 1-11 | 30221550 | * * Spring, valve - inlet |
| 1-12 | 30215891 | * * Plate valve - inlet |
