S250 Secan Jackleg Drill Parts

availability: This product is not available in the selected currency.
  • Nothing

Description

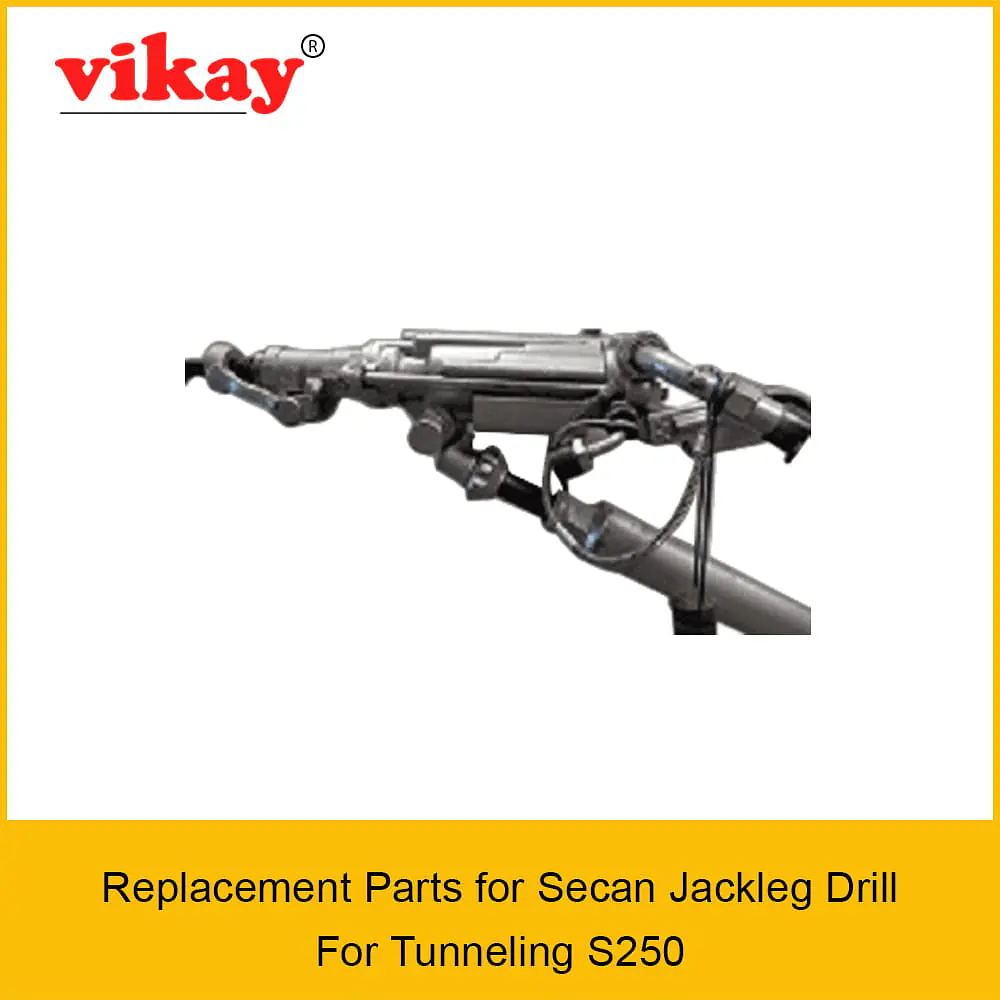

Replacement Parts for Secan Jackleg Drill For Tunneling S250

Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Secan Jackleg Drill For Tunneling S250 from India

Product

  •

Secan Jackleg Drill For Tunneling S250

 Cat Sl.No   Description    Ref. Part No.
2 Water Valve Spring Cap   C1521-PC1
3 O Ring (164231)   164-231
4 Water valve Spring    D1406
5 Valve Poppet   C1522-PC1
8 Housing Water Valve   B1181-PC4
10 Water Valve Seat Retainer   C2144
11 Water Tube Spacer   D1674
12 Water Tube   C1574A
13 Seat, Water Tube   D1675
14 Side Rod   C1572A
15 Throttle valve Handle Nut   D1385
16 Disc Spring   149-16 3MT
17 Throttle Valve Handle   C1509
18 Throttle valve Key   D1384
19 Throttle Valve   B1176
20 Side Rod Nut   D1388
21 Back Head   A660
22 Plunger, Throttle    D1383
23 Throttle valve plunger Spring   D1382
24 Plug (screw)   242-2P
25 Air Bend   C1525N
26 Air Bend Copper Washer   D1601
27 Air Bend Nut   C1526
28 Air Line Cap(Rubber cap)   C1811A
29 Air Inlet Screen(Stainer))   355538
31 Hose Spud   1356588
32 PAWL   D1381A
33 Pawl Plunger  (Steel)   S21-34
34 Pawl Plunger Spring   D1611-C
35 Rifle Bar   B1173
36 Ratchet Ring   B1170
37 Valve Box Pin(D1397)   S21-28
38 Valve Box   A745
39 Inner Valve   C1648
40 Valve Plug   A744
41 Spindle Nut(Nylock Nut)   1218UF
42 Disc Spring    149-12-2MT
43 Sellok Pin-Long(inner)   300-8-22
44 Sellok Pin-Short(Dowel Pin)   300-8-8
45 Twist Grip   C1518
47 Control Body   B1180
48 Control Spindle   B1183B
51 Operating handle   A697B
52 Retract Valve    C1514
52 Sleeve Valve   C1515
53 Plunger Spring   D1424
54 Sleeve spring   D1425
55 Plug Plunger   D1427
60 Operating Handle Adapter Nut   D1454
61 Nut Water Stem   S21-41
62A Water Stem Threaded   C1809
63 Water Stem Thrust Washer   S24-87
64 Seal Water Inlet   D1402
65 Water Inlet Screen   C1272
66 Water Inlet Adapter Spud   1358356
67 water Stem Cap-Rubber Cap   C1811W
68 Cl. Body Spindle Nut-  Nylock Nut   D1982
69 Clevis Body   A693A
71 Clevis Body Spindle Cone   D1398
72 Pin Spindle Locating   B1182A
73 Lock Washer Key   D1426
74 Cylinder Lug Bushing   C1523
75 Rilfe Nut   C1508
76 Piston   B2334
79 Front Cylinder Washer Liner   C1517
81 Spindle Thrust Washer    D1392
82 Spindle Spring   C1571
83 Spindle Lock Washer   C1519
84 Spindle Nut   C1527
85 Chuck Nut   C1512
87 Rotation Chuck.   B1178
88 Front Head   A2598
90 Steel Retainer Pin Nut(D1932)   12812UF
91 Steel Retainer   A2599
92 Steel Retainer Pin   C6908
93 Chuck Insert (22 mm)   C1418A

Details

  • type: product
  • SKU: S250parts
