Overhaul Kit IR 15T2 Replacement
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Overhaul Kit IR 15T2 Replacement

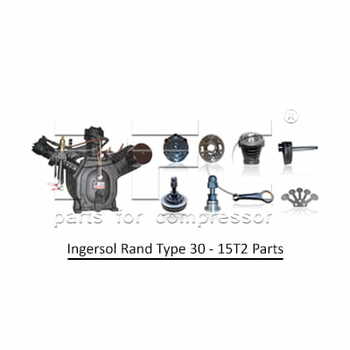

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 15T2 replacement from India.
Product
Overhaul Kit VK-OK15T2 IR 15T2 Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Gasket Set | 30423339 | -- |
| Gasket, Airhead | 30294284 | 1 | |
| Gasket, Lp Airhead | 30294326 | 1 | |
| Gasket, Airhead | 30294508 | 2 | |
| Gasket, Manifold | 30294870 | 3 | |
| Gasket, Shaft End Cover | 30294961 | 1 | |
| Gasket, Frame End Cover | 30439285 | 1 | |
| Gasket, Cylinder | 32221384 | 3 | |
| Gasket, Airhead Center | 37007754 | 1 | |
| Gasket, Airhead Center | 37047156 | 1 | |
| O-ring | 95022158 | 1 | |
| O-ring | 95022695 | 1 | |
| Gasket, Copper | 95674750 | 2 | |
| B | Ring/Gasket Set | 32226342 | -- |
| Washer, Copper - Pilot Valve Shim | 30346597 | 2 | |
| O - Ring - Thrust Pin | 95210225 | 1 | |
| O - Ring - Oil Fill Plug | 95022158 | 1 | |
| Gasket - Frame End Cover | 30439285 | 1 | |
| Gasket - Shaft End Cover | 30294961 | 1 | |
| Seal, Shaft Oil | 32204562 | 1 | |
| Gasket, Cylinder Flange | 30294235 | 3 | |
| Set - Ring 3rd Stage | 37138146 | 1 | |
| Gasket, Crosshead / Cylinder | 30294508 | 1 | |
| Set Ring - 2nd Stage | 32194276 | 1 | |
| Set Ring - 1st Stage | 32194144 | 1 | |
| Gasket Intercooler Manifold | 30294870 | 3 | |
| C | Valve Gasket Set | 32133951 | -- |
| Gasket, Airhead - 3rd Stage | 30294284 | 1 | |
| Spring, Valve - 3rd Stage Discharge | 30221584 | 1 | |
| Plate, Valve - 3rd Stage Discharge | 30215925 | 1 | |
| Plate, Valve - 3rd Stage Inlet | 30215834 | 1 | |
| Spring, Valve - 3rd Stage Inlet | 30221493 | 1 | |
| Gasket, Top/bottom Airhead - 2nd Stage | 37007754 | 1 | |
| Gasket, Airhead - 2nd Stage | 30294508 | 2 | |
| Spring, Valve - 2nd Stage Discharge | 30221576 | 1 | |
| Plate, Valve -2nd Stage Discharge | 30215941 | 1 | |
| Plate, Valve - 1st Stage Disch & 2nd Stg Inlet | 30181499 | 2 | |
| Spring, Valve - 1st Stage Disch & 2nd Stg Inlet | 30221501 | 2 | |
| Plate Valve - 1st Stage Inlet | 30215891 | 1 | |
| Spring Valve - 1st Stage | 30221550 | 1 | |
| Gasket, Airhead - 1st Stage | 30294326 | 1 | |
| Gasket Top/bottom Airhead - 1st Stage | 37047156 | 1 | |
| D | Bearing/Conn Rod Kit | 32310062 | -- |
| Crankpin Bushing | 32295875 | 1 | |
| L/P Connecting Rod | 32003659 | 2 | |
| H/P Connecting Rod | 32262438 | 1 | |
| Ball Bearing | 32295701 | 1 | |
| Bearing W/Snap Ring | 95951273 | 1 | |
| E | Air Filter Element | 32012957 | 1 |
| Total | 60 |
Details
- type: product
- SKU: 15T2OKIT
