Overhaul Kit 32319675 IR 242 Replacement
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Overhaul Kit 32319675 IR 242 Replacement

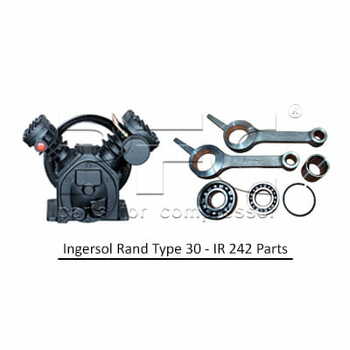

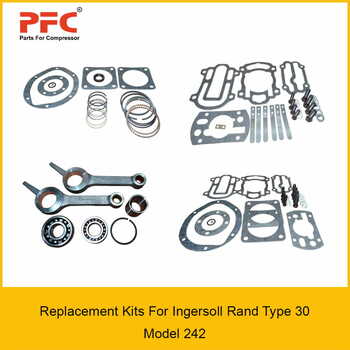

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 242 replacement from India.
Product
Overhaul Kit 32319675 IR 242 Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Bearing/Conn Rod Kit | 32127391 | -- |
| Crankpin Bushing | 30210199 | 1 | |
| Connecting Rod | 32004152 | 2 | |
| Ball Bearing (32248122) | 95213914 | 1 | |
| Ball Bearing W/Snap Ring | 95134185 | 1 | |
| B | Ring/Gasket Kit | 32198319 | -- |
| HP Ring Set | 32198368 | 1 | |
| LP Ring Set | 32194151 | 1 | |
| Oil Seal | 32204539 | 1 | |
| O-Ring | 95022158 | 1 | |
| O-Ring | 95022695 | 1 | |
| Flange Gasket | 30289870 | 2 | |
| Frame End Cover Gasket | 30439319 | 1 | |
| Shaft End Cover Gasket | 30294995 | 1 | |
| C | Valve/Gasket Kit | 32248294 | -- |
| Finger Valve | 30221170 | 6 | |
| H/P Head Gasket | 32246324 | 1 | |
| L/P Head Gsket | 32267551 | 1 | |
| H/P Spacer Gasket | 32246332 | 1 | |
| L/P Spacer Gasket | 32267544 | 1 | |
| Spring Shim | 32139891 | 1 | |
| Screw - 3/8 x 1 3/4 | 32246548 | 4 | |
| Flat Washer - 3/8 | 32246555 | 5 | |
| Flat Washer - 1/2 | 32279408 | 5 | |
| Hex Cap Screw | 95104196 | 4 | |
| D | Gasket Set | 32249302 | -- |
| O-Ring | 95022158 | 1 | |
| O-Ring | 95022695 | 1 | |
| LP Head Gasket | 32267551 | 1 | |
| LP Head Spacer Gasket | 32267544 | 1 | |
| Cylinder Flange Gasket | 30289870 | 2 | |
| Frame End Cover Gasket | 30439319 | 1 | |
| Shaft End Cover Gasket | 30294995 | 1 | |
| Flat Washer | 32246555 | 5 | |
| Hex Cap Screw | 32246548 | 4 | |
| Head Gasket | 32246324 | 1 | |
| Spacer Gasket | 32246332 | 1 | |
| Flat Washer | 32279408 | 5 | |
| Hex Cap Screw | 95104196 | 4 | |
| E | Air Filter Element | 32170979 | 1 |
| Total | 72 |
Details
- type: product
- SKU: 32319675
