Overhaul Kit 32319501 IR 15T Replacement
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Overhaul Kit 32319501 IR 15T Replacement

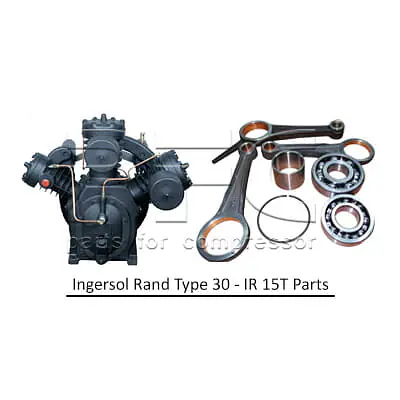

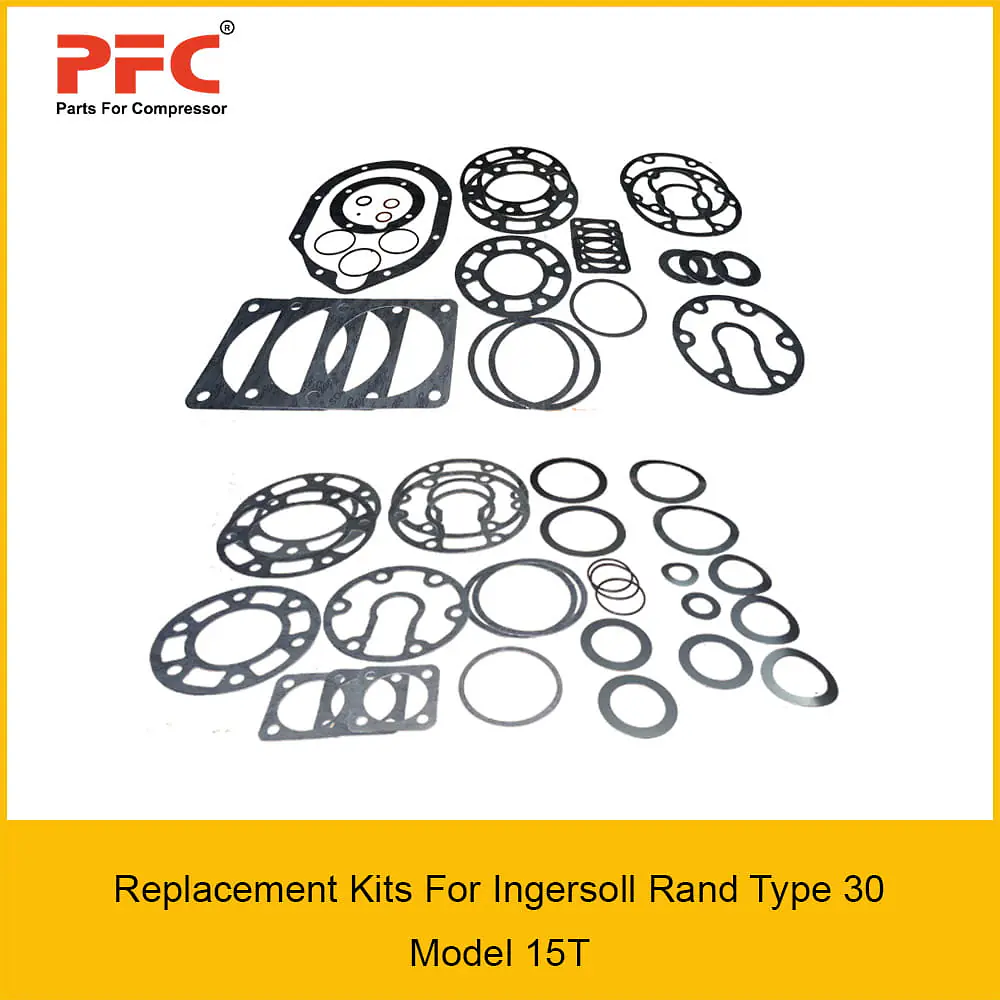

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 15T replacement from India.
Product
Overhaul Kit 32319501 IR 15T Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Valve/Gasket Kit | 32127490 | -- |
| HP Inlet LP Disch. VLV Plate | 30181499 | 3 | |
| HP Discharge Valve Plate | 30215941 | 1 | |
| HP Discharge Valve Spring | 30221576 | 1 | |
| HP Airhead Gasket | 30294508 | 1 | |
| HP Unloader Body Gasket | 30294680 | 1 | |
| HP Airhead Center Gasket | 37007754 | 1 | |
| LP Inlet Valve Plate | 30215891 | 2 | |
| HP Inlet LP Disch. VLV. Spring | 30221501 | 3 | |
| LP Inlet Valve Spring | 30221550 | 2 | |
| LP Airhead Gasket | 30294193 | 2 | |
| LP Unloader Body Gasket | 30294698 | 2 | |
| LP Airhead Center Gasket | 37007747 | 2 | |
| Unloader Cover Gasket | 30294656 | 3 | |
| Unloader O-Ring | 32136715 | 3 | |
| B | Bearing/Conn Rod Kit | 32127516 | -- |
| Crankpin Bushing | 32295875 | 1 | |
| H/P Connecting Rod | 32003642 | 1 | |
| L/P Connecting Rod | 32003659 | 2 | |
| Ball Bearing | 95764163 | 1 | |
| Bearing W/Snap Ring | 95951273 | 1 | |
| C | Ring/Gasket Set | 32218869 | -- |
| HP Ring Set | 32218182 | 1 | |
| LP Ring Set | 32198376 | 2 | |
| Oil Seal (32204596) | 32204562 | 1 | |
| Oil Filler Plug ORing | 95022158 | 1 | |
| O Ring | 95022695 | 1 | |
| Cylinder/Flame Gasket(32221384) | 30294235 | 3 | |
| Frame End Cover Gasket | 30439285 | 1 | |
| Shaft End Cover Gasket | 30294961 | 1 | |
| Copper Gasket | 95674750 | 2 | |
| Gasket, Manifold | 30294870 | 3 | |
| D | Gasket Set | 30418834 | -- |
| LP Airhead Gasket | 30294193 | 2 | |
| HP Airhead Gasket | 30294508 | 1 | |
| LP Airhead Center Gasket | 37007747 | 2 | |
| HP Airhead Center Gasket | 37007754 | 1 | |
| Manifold Gasket | 30294870 | 3 | |
| Cylinder Gasket (32221384) | 30294235 | 3 | |
| Unloader Cover Gasket | 30294656 | 3 | |
| LP Unloader Body Gasket | 30294698 | 2 | |
| HP Unloader Body Gasket | 30294680 | 1 | |
| Unloader O-Ring | 32136715 | 3 | |
| Shaft End Cover Gasket | 30294961 | 1 | |
| Frame End Cover Gasket | 30439285 | 1 | |
| Oil Fill Plug O-Ring | 95022158 | 1 | |
| O-Ring | 95022695 | 1 | |
| Copper Gasket | 95674750 | 2 | |
| E | Air Filter Element | 32012957 | 1 |
| Total | 77 |
Details
- type: product
- SKU: 32319501
