Overhaul Kit 32319477 IR 2545 Replacement

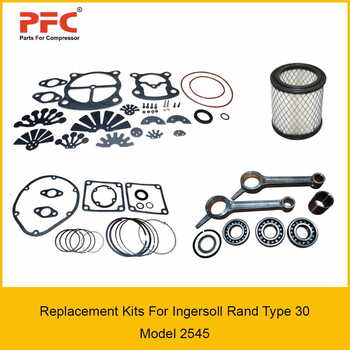

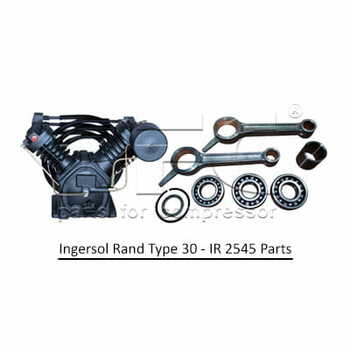

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 2545 replacement from India.
Product
Overhaul Kit 32319477 IR 2545 Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Gasket Set | 32307126 | -- |
| Valve Plate O-Ring | 32294076 | 1 | |
| Valve Plate O-Ring | 32294068 | 1 | |
| Shaft End Cover Gasket | 32294027 | 1 | |
| Cylinder Flange Gasket | 32294019 | 2 | |
| Unloader Cover Gasket | 32182826 | 1 | |
| Frame End Cover Gasket | 32294035 | 1 | |
| Manifold Gasket | 32188377 | 2 | |
| Unloader Piston O-Ring | 32188385 | 1 | |
| Oil Filler O-Ring | 32247850 | 1 | |
| O-Ring | 95022695 | 1 | |
| H/P Head Gasket | 32294043 | 1 | |
| L/P Head Gasket | 32294050 | 1 | |
| B | Ring/Gasket Kit | 32307084 | -- |
| Oil Seal | 32204570 | 1 | |
| Oil Filler Plug “O†Ring | 32247850 | 1 | |
| Cylinder Frame Gasket | 32294019 | 2 | |
| Manifold Gasket | 32188377 | 2 | |
| Frame End Cover Gasket | 32294035 | 1 | |
| Shaft End Cover Gasket | 32294027 | 1 | |
| Copper Gasket | 95674750 | 1 | |
| Ring Set (2.75) (70241963) | 32307092 | 1 | |
| Ring Set (5) (70241971) | 32307100 | 1 | |
| C | Valve/Gasket Kit | 32307118 | -- |
| Finger Valve HP Intake | 32294282 | 1 | |
| Discharge Valve Retainer H/P | 32294316 | 1 | |
| Screw-Hex Head M3 x 16 | 97511042 | 3 | |
| Valve HP Discharge | 32294290 | 1 | |
| Disch. Valve Damper H/P | 32294357 | 1 | |
| Intake Valve Retainer H/P | 32294308 | 1 | |
| Nut-Hex M3 W/Lock Washer | 97511059 | 3 | |
| Finger Valve L/P Intake | 32294324 | 1 | |
| Discharge Valve Retainer L/P | 32294340 | 2 | |
| Screw-Hex Head M4 x 16 | 32247512 | 4 | |
| Valve L/P Discharge | 32294332 | 1 | |
| Disch. Valve Damper L/P | 32294365 | 1 | |
| Nut-Hex M3 W/Lock Wahser | 97511059 | 3 | |
| H/P Head Gasket | 32294043 | 1 | |
| Unloader Cover Gasket | 32182826 | 1 | |
| Unloader Piston Seal | 32254740 | 1 | |
| Unloader Piston O-Ring | 32188385 | 1 | |
| LP Head Gasket | 32294050 | 1 | |
| Valve Plate O-Ring | 32294076 | 1 | |
| H/P Valve Plate O-Ring | 32294068 | 1 | |
| Manifold Gasket | 32188377 | 2 | |
| Nut, M4 Hex | 32248171 | 4 | |
| Damper Valve - 2545 | 32295826 | 1 | |
| D | LP Valve Kit | 32316291 | -- |
| Manifold Gasket | 32188377 | 1 | |
| Screw | 32247512 | 4 | |
| Nut | 32248171 | 4 | |
| LP Head Gasket | 32294050 | 1 | |
| Copper Gasket | 95674677 | 1 | |
| E | Bearing/Conn Rod Kit | 32204307 | -- |
| Crankpin Bushing | 30210165 | 1 | |
| Connecting Rod | 32198160 | 2 | |
| Ball Bearing | 95753604 | 2 | |
| Ball Bearing W/Snap Ring | 95951224 | 1 | |
| Inner Bearing Spacer | 32203218 | 1 | |
| F | Air Filter Element | 32012957 | 1 |
| Total | 81 |
Details
- type: product
- SKU: 32319477
