Overhaul Kit 32319469 IR 2475 Replacement
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Overhaul Kit 32319469 IR 2475 Replacement

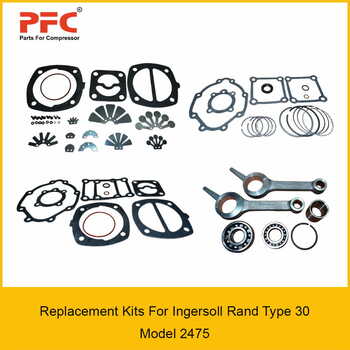

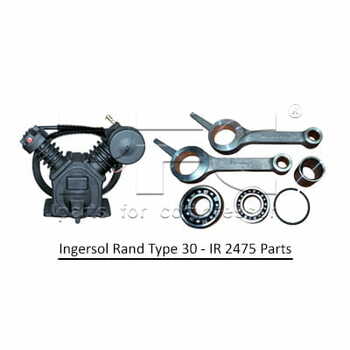

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 2475 replacement from India.
Product
Overhaul Kit 32319469 IR 2475 Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Gasket Set | 32301434 | -- |
| Frame End Cover Gasket | 32247884 | 1 | |
| Oil Fill Plug O-Ring | 32247850 | 1 | |
| Shaft End Cover Gasket | 32247876 | 1 | |
| Copper Washer Gasket 1/2 | 95674701 | 1 | |
| Cyl/Frame Gasket | 32247868 | 2 | |
| VP/HP Cyl. O-Ring | 32246878 | 1 | |
| HP Airhead Gasket | 32247926 | 1 | |
| VP/HP Cylinder Gasket | 32248197 | 1 | |
| LP Airhead Gasket | 32248189 | 1 | |
| B | Ring/Gasket Kit | 32301517 | -- |
| Frame End Cover Gasket | 32247884 | 1 | |
| Oil Fill Plug O-Ring | 32247850 | 1 | |
| Viton 1.12 Oil Seal (32204539) | 32499923 | 1 | |
| Shaft End Cover Gasket | 32247876 | 1 | |
| Copper Washer 1/2 | 95674701 | 1 | |
| Ring Set - HP 2 1/2 | 32307910 | 1 | |
| Ring Set - LP 4 | 32307928 | 1 | |
| Cyl/Frame Gasket | 32247868 | 2 | |
| C | Valve/Gasket Kit | 32301426 | -- |
| Airhead Gasket HP | 32247926 | 1 | |
| Airhead Gasket LP | 32248189 | 1 | |
| VP-HP Cyl. O-Ring | 32246878 | 1 | |
| VP-LP Cyl. Gasket | 32248197 | 1 | |
| HP Inlet Valve Finger | 32236671 | 1 | |
| HP Inlet Valve Retainer | 32297343 | 1 | |
| Hex Head Cap Screw M3-12 | 32297327 | 2 | |
| Hex Locknut W/Washer M3 | 97511059 | 2 | |
| HP Disch. Valve Retainer | 32295461 | 1 | |
| HP Discharge Finger Valve | 32241010 | 1 | |
| HP Discharge Damper Valve | 32295479 | 1 | |
| LP Inlet Finger Valve | 32248130 | 1 | |
| LP Inlet Valve Retainer | 32248148 | 1 | |
| Hex Head Cap Screw M4-12 | 32247512 | 6 | |
| Hex Nut M4 | 32248171 | 6 | |
| LP Discharge Finger Valve | 32248155 | 1 | |
| LP Discharge Damper Valve | 32294464 | 1 | |
| LP Discharge Valve Retainer | 32248163 | 1 | |
| D | Bearing/Conn Rod Kit (32127391) | 32301509 | -- |
| Ball Bearing (95213914) | 32248122 | 1 | |
| Bearing W/Snap Ring | 95134185 | 1 | |
| Crankpin Bushing | 30210199 | 1 | |
| Connecting Rod | 32004152 | 2 | |
| E | LP Valve Kit | 32316283 | -- |
| Screw | 32247512 | 6 | |
| Nut | 32248171 | 6 | |
| LP Airhead Gasket | 32248189 | 1 | |
| VP/LP Cyl. Gasket | 32248197 | 1 | |
| F | Air Filter Element | 32170979 | 1 |
| Total | 69 |
Details
- type: product
- SKU: 32319469
