NS215M Nasa Jackleg Drill Parts

Name: NS215M Nasa Jackleg Drill Parts
SKU: NS215Mparts_Nothing
Availability: InStock

Description

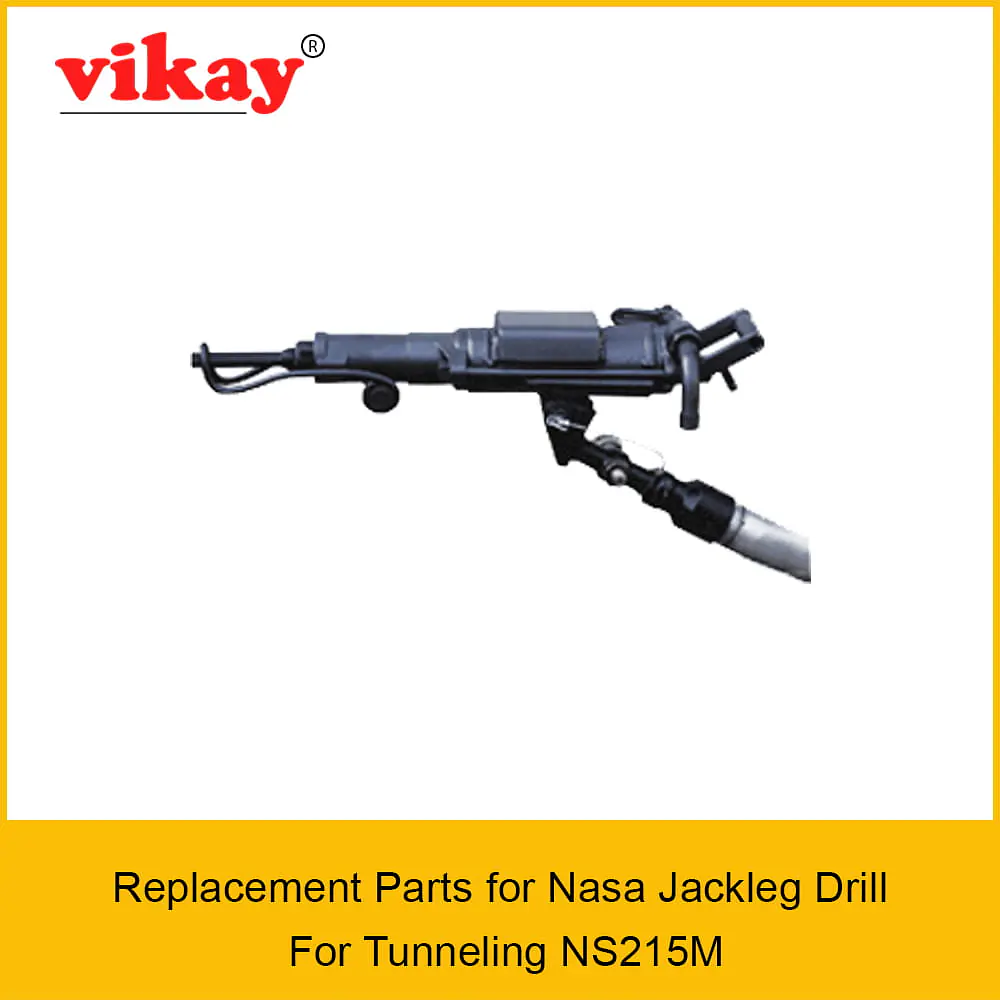

Replacement Parts for Nasa Jackleg Drill For Tunneling NS215M

Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Replacement Parts for Nasa Jackleg Drill For Tunneling NS215M from India

Product

Nasa Jackleg Drill For Tunneling NS215M

Cat Sl.No	Description	Nasa 215 Part Nos	Ref Part Nos
1	Side Rod Nut	21501	D2130
2	Spade Handle	21502	B2154-2
5	Water Stem Nut Copper Washer	21504	S21-50
6	Back Head Spud Threaded 12mm	21503	HF-7581-123
7	Water Tube	21505	S19-39
8	Water Tube Rubber (small)	21506	S21-45
9	Water Tube Cap Screw	21507	S21-42
10	Water Tube Thrust Washer	21508	S24-46
11	Water Tube Rubber (large)	21509	S21-44
12	Side Rod	21538	C3102
13	Back Head	21510	A1406
15	Throttle Valve Handle,Nylon	21517	S21-24P
17	Throttle Valve Plunger	21512	S21-29
18	Throttle Valve Spring	21511	S21-30
19	Ratchet Ring	21523	C2698L
20	PawlÂ	21521	S21-33
21	Pawl Plunger(STEEL)	21520	S21-34P
22	Pawl Plunger Spring	21519	D1611
23	Rifle Bar	21518	C2023L
24	Valve Box	21524	A1446A
25	ValveÂ	21525	C2697A
26	Valve Plug	21526	B2108A
27	Throttle Valve	21513	B2147
28	Air Stem Nut Copper Washer	21515	S21-91
29	Air Stem Nut	21516	S21-38
30	Air Bend	21514	S21-37A
31	Rifle nut	21527	D1623
32	Piston	21528	B2107
33	Valve Box Locating Pin	21522	D2482
34	Cylinder with Muffler	21529	A1404M2
35	Cylinder Lug Bush	21530	C1101M
36	Front Cylinder Washer Liner	21531	C6521
37	Front Cylinder Washer only	21532	B5474
38	Chuck nut	21533	S19-7
39	Chuck	21534	B2148
40	Front Head (Economy)	21535	A4994
41	Steel Retainer Std	21539	B2798L
43	Chuck Bush 7/8" 22mm	21537	C2701 22mm
43A	Chuck Bush 7/8" 25mm	21537A	C2846 25mm
44	Steel Retainer Bush	21536	D2146A

Details

type: product
SKU: NS215Mparts
