LP Valve IR 2540 Air Compressor Parts
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Low Pressure Valve Assembly For Ingersoll Rand Type 30 - Model 2540
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Low Pressure Valve Assembly For Ingersoll Rand Type 30 - Model 2540 from India
Product
- Page 1

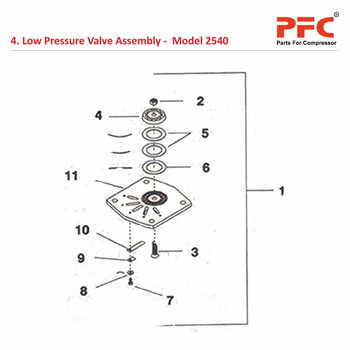

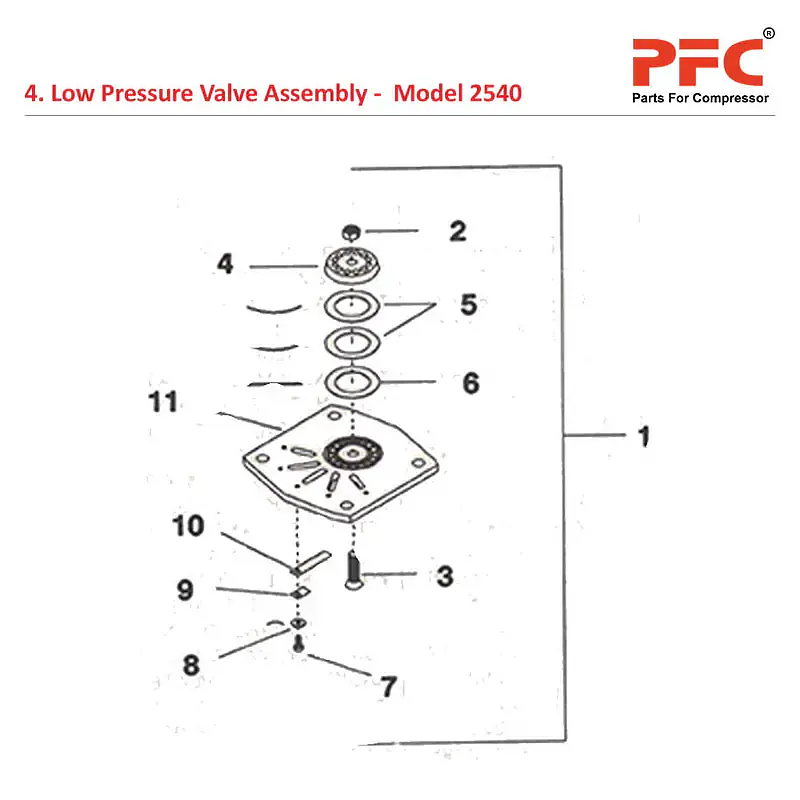

Low Pressure Valve Assembly
| Ref. No. | Part No. | Description |
| Figure 4. Low Pressure Valve Assembly | ||
| 4-1 | Assembly, Valve - Low Pressure | 32228389 |
| 4-2 | Nut, Whiz-Lock - 7/16-14 Hex | 97166946 |
| 4-3 | Bolt, Discharge Valve | 32223927 |
| 4-4 | Plate, Stop | 32228264 |
| 4-5 | Spring, Discharge Valve | 30221394 |
| 4-6 | Plate, Discharge Valve | 30215917 |
| 4-7 | Screw, Fillister Head 1/4-20 X 3/8" | 32035511 |
| 4-8 | Washer, Belleville - 1/4" | 32217382 |
| 4-9 | Retainer, Finger Valve | 32228306 |
| 4-10 | Valve, Finger | 30220115 |
| 4-11 | Plate, Seat - Low Pressure | 32228355 |
Details
- type: product
- SKU: 254004
