Cylinder and Piston IR 242 Air Compressor Parts

availability: This product is not available in the selected currency.
  • Nothing

Description

Cylinder and Piston Assembly For Ingersoll Rand Type 30 - Model 242

PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Cylinder and Piston Assembly For Ingersoll Rand Type 30 - Model 242 from India

View PDF

Product

  • Page 1

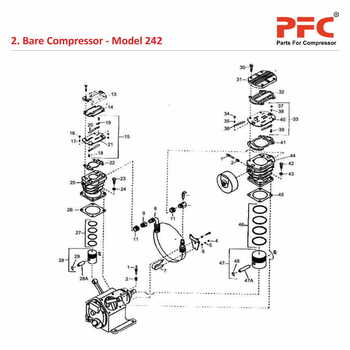

1. Cylinder and Piston Assembly

Sr.No Ref. Part Number Description
2-1 37008042 Tube Assembly, Breather
2-2 95082483 Connector, Tube
2-3 72062151 Valve, Safety-60 PSIG
2-4 95416335 Nut-Hex
2-5 32035479 Lockwasher, Spring - 1/4"
2-6 95094298 Washer, Flat -1/4"
2-7 32157356 Clamp Tube
2-8 32125262 Tube Assembly, Finned-Intercooler
2-9 95083275 Connector, Tube
2-10 30212682 Elbow, Tube
2-11 95038048 Bushing Reducing
2-12 95103800 Capscrew Hex Head
2-13 37127354 Airhead - Highpressure
2-14 32154163 Gasket, Airhead-Highpressure
2-15 32141194 Assembly, Spacer/Valve- High Pressure
2-16 95416335 * Nut-Hex
2-17 32035479 * Lockwasher, Spring-1/4"
2-18 32035461 * Screw, Fillister Head
2-19 32139891 * Shim, Finger Valve
2-20 30221170 * Valve, Finger
2-21 37127248 * Spacer
2-22 32154247 Gasket, Space
2-23 95053567 Capscrew - Hex Head
2-24 95674701 Gasket, Copper - 1/2"
2-25 37128634 Cylinder, Air- 2.5" -High Pressure
2-26 30289870 Gasket, Flange
2-27 32198368 Set, Ring - 2.5"
2-28 30288515 Piston, Air-Complete - 2.5-High Pressure
2-28 I 30287783 Pin Piston
2-29 30298020 * Ring Lock
2-30 95104188 Capscrew- Hex Head
2-31 37127362 Airhead - Lowpressure
2-32 30279038 Gasket, Airhead-Low Pressure
2-33 32024283 Assembly, Spacer/Valve - Low Pressure
2-34 32035495 * Screw, Fillister Head
2-35 32217382 * Washer Belleville - 1/4"
2-36 30221170 Valve Finger
2-37 95416335 * Nut.Hex
2-38 32035479 * Lockwasher Spring
2-39 32035461 * Screw, Fillister Head
2-40 37127289 * Spacer
2-41 30280515 Gasket, Spacer
2-42 95053567 Capscrew-Hex Head
2-43 95674701 Gasket, Copper - 1/2"
2-44 37128535 Cylinder, Air-4" - Low Pressure
2-45 30289870 Gasket - Flange
2-46 32194151 Set, Ring -4"
2-47 30215263 Piston, Air-Complete - 4" - Low Pressure
2-47 I 30288393 Pin Piston
2-48 30298020 * Ring, Lock
