Cylinder and Piston IR 231 Air Compressor Parts
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Cylinder and Piston Assembly For Ingersoll Rand Type 30 - Model 231
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Cylinder and Piston Assembly for Ingersoll Rand Type 30 - Model 231
Product
- Page 1

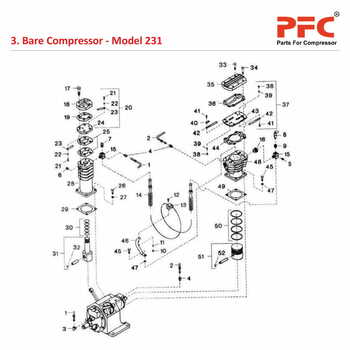

3. Cylinder and Piston Assembly
| Sr.No | Ref. Part Number | Description |
| 3-1 | 37131349 | Tube Assembly |
| 3-2 | 37131216 | Tube Assembly, Breather |
| 3-3 | 95031860 | Tube Elbow |
| 3-4 | 95082483 | Connector, Male |
| 3-5 | 95033585 | Plug, Pipe Square Head |
| 3-6 | 95252409 | Plug, Pipe Square Head |
| 3-7 | 95033601 | Plug, Pipe Square Head |
| 3-8 | 30812119 | Valve Safety - 125 PSIG |
| 3-9 | 95038147 | Bushing, Reducing |
| 3-10 | 95077681 | Nut-Hex Head |
| 3-11 | 95043196 | Lockwasher, Spring |
| 3-12 | 95053070 | Capscrew-Hex Head |
| 3-13 | 32065641 | Clamp, Tube |
| 3-14 | 32042632 | Tube Assembly, Finned - Intercooler |
| 3-15 | 30282727 | Tee, Manifold - Inlet/Discharge |
| 3-16 | 95037446 | Bushing, Reducing |
| 3-17 | 95104196 | Capscrew-Hex Head |
| 3-18 | 37127305 | Airhead-High Pressure |
| 3-19 | 30280341 | Gasket, Airhead |
| 3-20 | 32058760 | Assembly-Spacer/Valve-High Pressure |
| 3-21 | 32035495 | * Screw, Fillister Head |
| 3-22 | 30326573 | * Washer, Flat |
| 3-23 | 30220115 | * Valve, Finger |
| 3-24 | 32015661 | * Spacer |
| 3-25 | 30278964 | Gasket, Spacer |
| 3-26 | 95079612 | Capscrew, Hex Head |
| 3-27 | 95674677 | Gasket, Copper |
| 3-28 | 37218550 | Cylinder, Air-1.25" High Pressure |
| 3-29 | 30294227 | Gasket, Flange |
| 3-30 | 37138229 | Set, Ring |
| 3-31 | 30215412 | Piston, Air - Complete |
| 3-32 | 35151067 | * Ring, Lock |
| 3-33 | 95103792 | Capscrew-Hex Head |
| 3-34 | 95103800 | Capscrew-Hex Head |
| 3-35 | 37127354 | Airhead-Low Pressure |
| 3-36 | 30280507 | Gasket, Airhead |
| 3-37 | 32141194 | Assembly-Spacer/Valve-Low Pressure |
| 3-38 | 95416335 | * Nut-Hex |
| 3-39 | 32035479 | * Lockwasher, Spring |
| 3-40 | 32035461 | * Crew-Fillster Head |
| 3-41 | 32139891 | * Shim, Finger Valve |
| 3-42 | 30221170 | * Valve, Finger" |
| 3-43 | 37127248 | * Spacer |
| 3-44 | 30280499 | Gasket, Spacer |
| 3-45 | 95053146 | Capscrew-Hex Head |
| 3-46 | 30298202 | Brace, Intercooler |
| 3-47 | 95674677 | Gasket, Copper |
| 3-48 | 37130630 | Cylinder, Air |
| 3-49 | 30294227 | Gasket, Flange |
| 3-50 | 32194276 | Set, Ring |
| 3-51 | 30292429 | Piston, Air - Complete |
| 3-52 | 35151067 | * Ring, Lock |
