Cylinder and Piston Assembly IR 15T Parts
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Cylinder and Piston Assembly For Ingersoll Rand Type 30 Model 15T Replacement Parts
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Cylinder and Piston Assembly For Ingersoll Rand Type 30 Model 15T from India.
Product
- Page 1

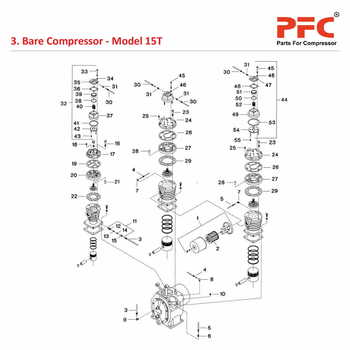

1 Cylinder and Piston Assembly
| Sr.No | Ref. Part Number | Description |
| 3-1 | 32109779 | Filter complete - inlet |
| 3-2 | 32012957 | * Element, filter - 10 micron |
| 3-3 | 37003845 | Tube Assy, cylinder relief/pilot valve 3/8 dia |
| 3-4 | 37003829 | Tube Assy, breather - 1/16 dia |
| 3-5 | 37003837 | Tube Assly,frame end cover/L.P.cyl - 5/16 dia |
| 3-6 | 32157554 | Connector, Male 5/16 X 1/4 |
| 3-7 | 95031860 | Elbow tube- 5/16 X 1/8 |
| 3-8 | 95110441 | Elbow tube- 5/16 X 1/4 |
| 3-9 | 95040143 | Elbow tube- 3/8 X 1/4 |
| 3-10 | 95252409 | Plug, Pipe - Hex 1/4 |
| 3-11 | 30291801 | Assy, cylinder relief valve |
| 3-12 | 35154111 | * Body, cylinder relief valve |
| 3-13 | 35154129 | * Valve , cylinder relief valve |
| 3-14 | 30672638 | * Spring , cylinder relief valve |
| 3-15 | 30279293 | * Cap, cylinder relief valve] |
| 3-16 | 95053054 | Capscrew - Hex 1/2 - 13 X 3 |
| 3-17 | 37130382 | Airhead, top - high pressure |
| 3-18 | 32179038 | * Piug, pipe - Hex head 1/4 |
| 3-19 | 37007754 | Gasket, airhead - top/bottom - high pressure |
| 3-20 | 37130366 | Airhead bottom half - high pressure |
| 3-21 | 37114030 | Dowel |
| 3-22 | 30294508 | Gasket, airhead - high perssure |
| 3-23 | 95053054 | Capscrew - Hex 1/2 - 13 X 3 |
| 3-24 | 37130515 | Airhead, top - low pressure |
| 3-25 | 32179038 | * Piug, pipe - Hex head 1/4 |
| 3-26 | 37007747 | Gasket, airhead - top/bottom - low perssure |
| 3-27 | 37130499 | Airhead, bottom half - low pressure |
| 3-28 | 37114030 | Dowel |
| 3-29 | 30294193 | Gasket, airhead - low perssure |
| Parts Listed Below Used With Optional Constant Speed Control | ||
| 3-30 | 37003852 | Assy,tube-LP/LP/HP constant speed-5/16 dia |
| 3-31 | 95082483 | Connector tube - 5/16 X 1/8 |
| 3-32 | 30292015 | Unloader - complete - high pressure |
| 3-33 | 95102042 | * Capscrew - Hex 3/8 - 16 X 3-1/2 |
| 3-34 | 30345227 | * Washer, flat - 3/8 |
| 3-35 | 37129905 | * Cover, unloader |
| 3-36 | 30294656 | * Gasket, unloader cover |
| 3-37 | 37129889 | * Body, unloader |
| 3-38 | 32136715 | * O - ring |
| 3-39 | 32139883 | * Piston, unloader |
| 3-40 | 30416853 | * Spring, unloader piston |
| 3-41 | 30294680 | * Gasket, Unloader body |
| 3-42 | 32016578 | * Assy, unloader plate |
| 3-43 | 32012395 | * Spring, unloader pin |
| 3-44 | 30292007 | Unloader - complete - low pressure |
| 3-45 | 95102042 | Capscrew-Hex 3/8 - 16 X 3-1/2 |
| 3-46 | 30345227 | * Washer, flat - 3/8 |
| 3-47 | 37129905 | * Cover, unloader |
| 3-48 | 30294656 | * Gasket, unloader cover |
| 3-49 | 37129947 | * Body, unloader |
| 3-50 | 32136715 | * O - ring |
| 3-51 | 32139883 | * Piston, unloader |
| 3-52 | 30416853 | * Spring, unloader piston |
| 3-53 | 30294698 | * Gasket unloader body |
| 3-54 | 32016537 | * Assy, unloader plate |
| 3-55 | 32012395 | * Spring, unloader pin |
