Compressor Pump Assembly For Ingersoll Rand Type 30 - Model 2545

PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Pump Assembly For Ingersoll Rand Type 30 - Model 2545 from India.

 View PDF

Product

  • Page 1

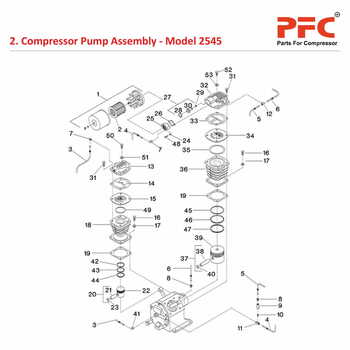

1. Compressor Pump Assembly

Sr.No Ref. Part Number Description
2-1 32230542 Filter, Air Inlet - Complete
2-2 32012957 * Element, Filter - 10 Micron
2-3 32293953 Assembly, Tube -Pilot Valve/High Pressure Head
2-4 32201444 Assembly, Tube -Frame End Cover Tee/Inlet
2-5 32293961 Assembly, Tube -Fec Check Valve/Low Pressure Head
2-6 32293946 Assembly, Tube -Breather
2-7 95031860 Elbow, Tube - 5/16 X 1/8"
2-8 95082483 Connector, Tube - 5/16 X 1/8"
2-9 32001141 Valve, Check
2-10 95796017 Nipple, Close - 1/8" X 3/4"
2-11 32203242 Connector, Male -5/16 X 1/4"
2-12 95007522 Tee, Male Branch - 5/16 X 1/8"
2-13 32294084 Head, High Pressure
2-14 32294043 Gasket, Head - High Pressure
2-15 32293904 Assembly, Valve Plate - High Pressure (Fig. D)
2-16 95053567 Capscrew, Hex - 1/2-13 X 1-1/4"
2-17 95674701 Gasket, Copper Washer - 1/2"
2-18 32295248 Cylinder -2-3/4"- 2nd Stage
2-19 32294019 Gasket, Flange
2-20 32496614 Complete, Piston/Pin - High Pressure
2-21 32182818 * Pin, Piston
2-22 NSS * Piston - 2-3/4"
2-23 30287791 * Ring/Lock
2-24 95043188 Lockwasher, Spring - 5/16"
2-25 32230633 Cover, Unloader
2-26 32182826 Gasket, Unloader Cover
2-27 32256265 Assembly, Piston Unloader
2-28 32254740 * Seal, Unloader Piston
2-29 32188385 * O-Ring, Unloader Piston
2-30 NSS * Piston, Unloader
2-31 95104188 Capscrew, Hex - 1/2-13 X 1-3/4"
2-32 32499899 Head - Low Pressure
2-33 32294050 Gasket, Head - Low Pressure
2-34 32293912 Assembly, Valve Plate - Low Pressure (Fig.C)
2-35 32294076 O-Ring, Valve Plate
2-36 32295271 Cylinder -5" - 1st Stage
2-37 32496580 Complete, Piston/Pin - Low Pressure
2-38 30297022 * Pin, Piston
2-39 NSS * Piston, Low Pressure (5")
2-40 30287791 * Ring,Lock
2-41 95110441 Elbow, 5/16 X 1/4" Tube
2-42 32294167 Set, High Pressure (2.75") Piston Rings
2-43 32294175 Ring, Scraper (2.75")
2-44 32295792 Ring, Oil Control (2.75")
2-45 32294209 Set, Low Pressure (5") Piston Rings
2-46 32294217 Ring, Scraper (5")
2-47 32295784 Ring, Oil Control (5")
2-48 95079927 Capscrew, 5/16-18 X 1-3/4" Hex Head
2-49 32294068 O-Ring, High Pressure Valve Plate
2-50 95318978 Capscrew, 1/4-28 X 2-1/4" Hex Head
2-51 95674677 Washer, 3/8" Copper
2-52 32294373 Capscrew, 3/8-24 X 3-1/2" Hex Head
2-53 32255903 Washer, 1/4" Copper
