Compressor Frame IR 7100 Air Compressor Parts
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Compressor Frame Assembly for Ingersoll Rand Type 30 - Model 7100
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly for Ingersoll Rand Type 30 - Model 7100 from India.
Product
- Page 1

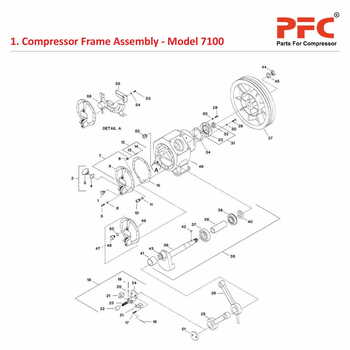

1.1 Compressor Frame Assembly
| Sr.No | Ref. Part Number | Description |
| 1-1 | 95344651 | Plug, Pipe - Hex head 1/2" |
| 1-2 | 32195083 | Plug, Oil Gauge - Complete |
| 1-3 | NSS | * Plug, Oil Gauge |
| 1-4 | 95022158 | * O-Ring - Oil Gauge Plug |
| 1-5 | 95053146 | Capscrew - Hex 3/8 - 16 X 7/8" |
| 1-6 | 95674677 | Gasket Copper washer - 3/8" |
| 1-7 | 31246572 | Ass'y, Frame end Cover (Units with |
| Centrifugal Unloader | ||
| 1-8 | 37128261 | * Bushing, Pilot Valve |
| 1-9 | NSS | * Cover, Frame End |
| 1-10 | 37113701 | Valve, Pilot (If Supplied) |
| 1-11 | 30346597 | Washer, Copper |
| 1-12 | 32218406 | Ass'y Thrust Pin (If supplied |
| 1-13 | NSS | * Pin, Thrust |
| 1-14 | 95210225 | O- Ring |
| 1-15 | 30439277 | Gasket, Frame End Cover |
| 1-16 | 9079 9289 | Lockwire - 12 GA X5 " |
| 1-17 | 95101929 | Capscrew -Hex 3/8 - 16 X 1" |
| 1-18 | 30290936 | Ass'y Crankpin Cap - Centrifugal Unloader |
| (Units witt Centrifugal unloader) | ||
| 1-19 | 90799271 | * Lockwire - 12 GA X5 " |
| 1-20 | 30214951 | * Pin, Centrifugal Unloader weight |
| 1-21 | 30220875 | * Weight, Centrifugal unloader |
| 1-22 | 30285688 | * Plunger, Centrifugal Unloader |
| 1-23 | 30672281 | * Spring, Centrifugal Unloader |
| 1-24 | 30210322 | * Body, Crankpin Cap |
| 1-25 | 32003659 | Rod, Connecting - first stage low pressure |
| 1-26 | 30217327 | Rod, Connecting-Second stage high pressure |
| 1-27 | 32177206 | Wheel V-Belt |
| 1-28 | 95053146 | Capscrew - Hex 3/8 - 16 X 7/8" |
| 1-29 | 95043766 | Capscrew - Hex 3/8 - 16 X 1-1/4" |
| 1-30 | 95674677 | Gasket Copper washer - 3/8" |
| 1-31 | 37125333 | Ass'y, Shaft End Cover |
| 1-32 | 32204588 | * Seal |
| 1-33 | NSS | * Cover, Shaft End |
| 1-34 | 30295166 | Gasket, Shaft End Cover |
| 1-35 | 30211627 | Ass'y, Crankshaft - Complete |
| 1-36 | NSS | Ass'y, Disc And Shaft |
| 1-37 | 95305652 | * Bearing Ball |
| 1-38 | 30218432 | * Spacer Main Bearing |
| 1-39 | 95213971 | * Bearing Ball - With Snap ring |
| 1-40 | 30216808 | * Ring, Bearing Retainer |
| 1-41 | 37002375 | * Bushing, Crankpin |
| 1-42 | 95047437 | * Key, woodruff |
| 1-43 | 32187684 | * Loctite 609 -Tube |
| 1-44 | 30835698 | Nut, V- Belt Wheel |
| 1-45 | 95064747 | Lockwasher, Spring - 1-3/8" |
| 1-46 | 32270571 | Frame, Compressor |
| 1-47 | 97335749 | Ass'y, Frame end Cover (Units without |
| Centrifugal Unloader) | ||
| 1-48 | 30221311 | Plug, Frame End Cover |
| 1-49 | NSS | * Cover, Frame End |
| 1-50 | 30346597 | Washer, 7/8" |
| 1-51 | 30210348 | Cap, Crankpin (units without Centrifugal |
| Unloader | ||
| 1-52 | 97334270 | Glass, Oil Sight (If Provided) |
| Detail A - Low Oil Lever Switch(If Provided) | ||
| 1-53 | 95053070 | Capscrew - Hex 1/4-20 X 1/2" |
| 1-54 | 95043196 | Lockwasher, Spring - 1/4" |
| 1-55 | 30285548 | Baffle, Low Oil Level Switch |
| 1-56 | 32276313 | Switch, Low Oil Level Nema 1 |
Details
- type: product
- SKU: 710001
