Compressor Frame IR 5T2 NL Air Compressor Parts
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 5T2NL
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 5T2NL from India.
Product
- Page 1

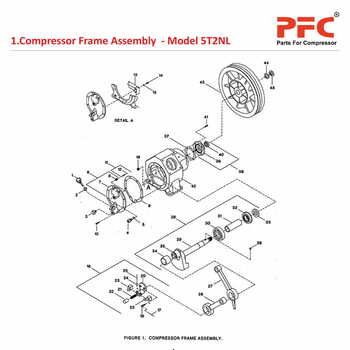

Compressor Frame Assembly
| Ref. No. | Part No. | Description |
| 1-1 | 32222275 | Plug, Oil Gauge |
| 1-2 | 32225476 | 0-Ring, Oil Gauge |
| 1-3 | 95033445 | Plug, Pipe - Hex Head - 1/2" |
| 1-4 | 32250144 | Assembly, Pilot Valve |
| 1-5 | 32225500 | Washer, Copper - Pilot Valve |
| 1.6 | 32222903 | Assembly, Frame End Cover |
| 1 -7 | 32222291 | Cover, Frame End |
| 1-8 | 32222432 | Bushing, Pilot Valve |
| 1-9 | 30294979 | Gasket, Frame End Cover |
| 1-10 | 32225187 | Capscrew - M10 X 25 |
| 1-11 | 32255127 | Assembly, Thrust Pin |
| 1-12 | 32225492 | 0-Ring, Thrust Pin |
| 1-13 | 30285548 | Baffle, Low Oil Level Switch |
| 1-14 | 32225203 | Capscrew - M6 X 10 |
| 1-15 | 32225302 | Washer, Lock - 6Mm |
| 1-16 | 32179020 | Plug, Pipe - Countersunk Hex Head |
| 1-17 | 37605193 | Lockwire - 12Ga |
| 1-18 | 32225179 | Capscrew - M10 X 20 |
| 1-19 | 32222812 | Assembly, Crankpin Cap |
| 1-20 | 32222457 | Body, Crankpin Cap |
| 1-21 | 30815898 | Spring, Centrifugal Unloader |
| 1-22 | 32222440 | Plunger, Centrifugal Unloader |
| 1-23 | 30220875 | Weight, Centrifugal Unloader |
| 1-24 | 30214951 | Pin, Centrifugal Unloader Weight |
| 1-25 | 37605185 | Lockwire - 12Ga |
| 1-26 | 32222382 | Rod, Connecting - Low Pressure |
| 1-27 | 32222267 | Rod, Connecting - High Pressure |
| 1-28 | 32222671 | Assembly, Crankshaft |
| 1-29 | NSS | Assembly, Disc & Shaft |
| 1-30 | 95214342 | Bearing, Ball |
| 1-31 | 37127933 | Spacer, Crankshaft/Bearing |
| 1-32 | 95213948 | Bearing, Ball - W/Snap Ring |
| 1-33 | 30217012 | Ring, Bearing Retainer |
| 1-34 | 37002367 | Bushing, Crankpin |
| 1-35 | 32185803 | Loctite 609 - Tube- For Crankpin Bushing Assembly |
| 1-36 | 32226144 | Key, Woodruff |
| 1-37 | 30295059 | Gasket, Shaft End Cover |
| 1-38 | 32222556 | Assembly, Shaft End Cover |
| 1-39 | NSS | Cover, Shaft End |
| 1-40 | 32204547 | Seal, Oil |
| 1-41 | 32225187 | Capscrew - M10 X 25 |
| 1-42 | 32222317 | Frame, Compressor |
| 1-43 | 32222655 | Wheel, V-Belt |
| 1-44 | 32225351 | Washer, Lock - Beltwheel |
| 1-45 | 32225344 | Nut - Beltwheel |
Details
- type: product
- SKU: 5T2NL01
