Compressor Frame IR 3000 Air Compressor Parts
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Compressor Frame Assembly Ingersoll Rand Type 30 - Model 3000
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly Ingersoll Rand Type 30 - Model 3000 from India.
Product
- Page 1

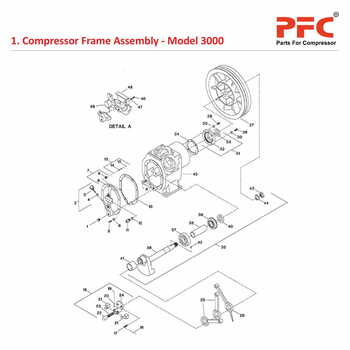

1.1 Compressor Frame Assembly
| Sr.No | Ref. Part Number | Description |
| 1-1 | 95344651 | Plug, Oil Drain |
| 1-2 | 30289003 | Plug, Oil Fill - Complete |
| 1-3 | NSS | * Plug, Oil Fill |
| 1-4 | 95022158 | * O-Ring, Oil Fill Plug |
| 1-5 | 95035333 | Capscrew, Hex - 3/8-16 X 1" |
| 1-6 | 95674677 | Washer, Copper - 3/8" |
| 1-7 | 37128089 | Assembly, Frame End Cover |
| 1-8 | NSS | * Cover, Frame End |
| 1-9 | 37128261 | * Bushing, Pilot Valve |
| 1-10 | 30439285 | Gasket, Frame End Cover |
| 1-11 | 37113701 | Valve, Pilot |
| 1-12 | 30346597 | Washer, Copper |
| 1-13 | 32218406 | Assembly, Thrust Pin |
| 1-14 | NSS | * Pin, Thrust |
| 1-15 | 95022695 | * O-Ring |
| 1-16 | 90799289 | Lockwire - 12 GA X 5" |
| 1-17 | 95101929 | Capscrew - Hex 3/8-16 X 1" |
| 1-18 | 30290936 | Assembly, Crankpin Cap - Centrifugal Unloader |
| 1-19 | 90799271 | * Lockwire - 12 GA X 5" |
| 1-20 | 30214951 | * Pin, Centrifugal Unloader Weight |
| 1-21 | 30220875 | * Weight, Centrifugal Unloader |
| 1-22 | 30285688 | * Plunger, Centrifugal Unloader |
| 1-23 | 30672281 | * Spring, Centrifugal Unloder |
| 1-24 | 30210322 | * Body, Crankspin Cap |
| 1-25 | 32003659 | Rod, Connecting - First Stage (Low Pressure) |
| 1-26 | 32003642 | Rod, Connecting - Second Stage (High Pressure) |
| 1-27 | 32177180 | Beltwheel |
| 1-28 | 95035333 | Capscrew - Hex 3/8-16 X 1" |
| 1-29 | 95043766 | Capscrew - Hex 3/8-16 X 1-1/4" |
| 1-30 | 95674677 | Washer, Copper - 3/8" |
| 1-31 | 32499881 | Assembly, Crankshaft End Cover |
| 1-32 | NSS | * Cover, Crankshaft End |
| 1-33 | 32498958 | * Seal, Oil |
| 1-34 | 30294961 | Gasket, Crankshaft End Cover |
| 1-35 | 32310054 | Assembly, Crankshaft - Complete |
| 1-36 | NSS | * Assembly, Disc and Crankshaft |
| 1-37 | 32295701 | * Bearing, Ball |
| 1-38 | 30218457 | * Spacer, Main Bearing |
| 1-39 | 95305645 | * Bearing, Ball - Main Snap Ring |
| 1-40 | 30216824 | * Ring, Bearing Retainer |
| 1-41 | 32295875 | * Bushing, Crankpin |
| 1-42 | 95083721 | * Key, Woodruff |
| 1-43 | 30287668 | * Nut, Beltwheel |
| 1-44 | 95265690 | * Lockwasher, Spring -1-3/8" |
| 1-45 | 32270621 | * Frame, Compressor |
| Detail A - Low Oil Level Switch | ||
| 1-46 | 95053070 | Capscrew - Hex 1/4-20 X 1/2" |
| 1-47 | 95043196 | Lockwasher, Spring - 1/4" |
| 1-48 | 32304347 | Baffle, Low Oil Level Switch |
| 1-49 | 32201527 | Switch, Low Oil Level - Nema 1 |
