Compressor Frame IR 242 Air Compressor Parts
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 242
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 242 from India
Product
- Page 1

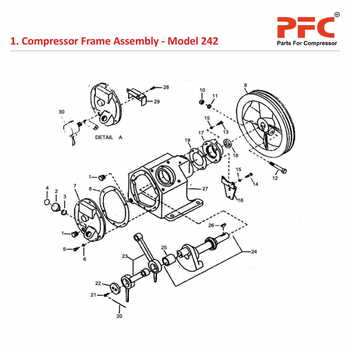

1. Compressor Frame Assembly
| Sr.No | Ref. Part Number | Description |
| 1-1 | 95344651 | Plug, Pipe-Hex Head 1/2" |
| 1-2 | 30216055 | Plug, Oil Filler-Complete |
| 1-3 | 95022158 | * O Ring |
| 1-4 | 32000655 | Decal, Hand Tighten |
| 1-5 | 95227302 | Capscrew - Hex Head |
| 1-6 | 95043238 | Gasket - Copper Washer |
| 1-7 | 37127800 | Cover Frame End |
| 1-8 | 30439319 | Gasket, Frame End Cover |
| 1-9 | 32145146 | Wheel, "V"- Belt |
| 1-10 | 95077798 | * Nut-Hex |
| 1-11 | 85716890 | * Lockwasher, Spring-1/2" |
| 1-12 | 95053682 | * Capscrew - Hex Head |
| 1-13 | 95227302 | * Capscrew - Hex Head |
| 1-14 | 95079984 | * Capscrew - Hex Head |
| 1-15 | 95674651 | Gasket - Copper Washer |
| 1-16 | 32157349 | Bracket, Intercooler Clamp |
| 1-17 | 37127677 | Cover, Shaft End |
| 1-18 | 32204539 | Seal, Oil |
| 1-19 | 30294995 | Gasket, Shaft End Cover |
| 1-20 | 90799289 | Lockwire, 12 GA X 5" |
| 1-21 | 30278667 | * Capscrew - Hex Head |
| 1-22 | 30210298 | Cap, Crankpin |
| 1-23 | 32004152 | Rod, Connecting |
| 1-24. | 32146052 | Crankshaft - Complete |
| 1-25 | 30210199 | * Bushing, Crankpin |
| 1-26 | 95433173 | * Key, Woodruff |
| 1-27 | 32012932 | Frame, Compressor |
| Optional Equipment Detail A | ||
| 1-28 | 95311650 | * Capscrew - Hex Head |
| 1-29 | 30285597 | Baffle, Low Oil Level Switch |
| 1-30 | 32201527 | Switch, Low Oil Level |
Details
- type: product
- SKU: 24201
