Compressor Frame IR 2340 Air Compressor Parts
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 2340
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 2340 from India.
Product
- Page 1

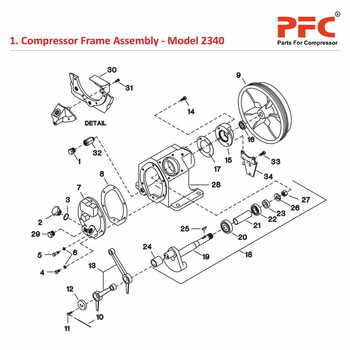

1. Compressor Frame Assembly
| Sr.No | Ref. Part Number | Description |
| 1-1 | 95033601 | Plug, Pipe - Hex Head -3/8" |
| 1-2 | 37127065 | Plug, Oil Filler |
| 1-3 | 95022158 | O-Ring |
| 1-4 | 95105243 | Capscrew, Hex Head - 5/16-18X7/8" |
| 1-5 | 95002978 | Capscrew, Hex Head - 5/16-18X1-1/4" |
| 1-6 | 95674651 | Gasket, Copper Washer |
| 1-7 | 37127123 | Cover, Frame End |
| 1-8 | 32293680 | Gasket, Frame End Cover |
| 1-9 | 32498974 | Beltwheel(Clockwise Rotation When Facing Unit) |
| 1-9 | 32293698 | Beltwheel(Counter-Clockwise Rotation When Facing Unit) |
| 1-10 | 90799289 | Lockwire, 12 GA-5" |
| 1-11 | 30278709 | Capscrew, Lock-1/4-20X3/4" |
| 1-12 | 30210314 | Cap, Crankpin |
| 1-13 | 32004145 | Rod, Connecting |
| 1-14 | 95105243 | Capscrew, Hex-5/16-18X7/8" |
| 1-15 | 37127032 | Cover, Shaft End |
| 1-16 | 32204521 | Seal, Oil |
| 1-17 | 32293672 | Gasket, Shaft End Cover |
| 1-18 | 32496549 | Crankshaft, Complete |
| 1-19 | 32293821 | * Assy, Disc/Shaft |
| 1-20 | 95930400 | * Bearing, Ball |
| 1-21 | 37127016 | * Spacer, Crankshaft Bearing |
| 1-22 | 95951216 | * Bearing, Ball - W/Snap Ring |
| 1-23 | 37127024 | * Ring, Bearing Retainer |
| 1-24 | 30289813 | * Bushing, Crankpin |
| 1-25 | 95433173 | * Key, Woodruff |
| 1-26 | 95081790 | * Lockwasher - 5/8" |
| 1-27 | 95076808 | * Nut, Hex -5/8-18 |
| 1-28 | 30222327 | Frame, Compressor |
| 1-29 | 95200333 | Plug, Pipe - Hex Head -3/4" |
| 1-30 | 32270639 | Baffle, Oil Level (See Note) |
| 1-31 | 95053070 | Capscrew, Hex -1/4-20 X 1/2" (See Note) |
| 1-32 | 70235049 | Adapter, Drain Extension (See Note) |
| 1-33 | 95105243 | Capscrew, Hex - 5/16 -18 X 7/8" (See Note) |
| 1-34 | 97331011 | Bracket, Intercooler Clamp |
Details
- type: product
- SKU: 234001
