Description

Compressor Frame Assembly For Ingersoll Rand Type 30 Model 231

PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly For Ingersoll Rand Type 30 Model 231 from India.

 View PDF

Product

  • Page 1

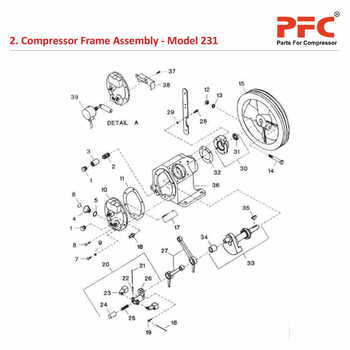

2.1 Compressor Frame Assembly

Sr.No Ref. Part Number Description
2-1 95344651 Plug. Pipe Hex Head
2-2 95640009 Nipple, Long
2-3 32179061 Coupling, Pipe -1/2"
2-4 30216055 Plug, Oil Filler - Complete
2-5 95018149 * O-Ring
2-6 32000655 Decal, Hand Tighten
2-7 95227302 Capscrew-Hex Head
2-8 95079976 Capscrew-Hex Head
2-9 95674651 Gasket-Copper Washer
2-10 37127107 Cover,  Frame End
2-11 30299226 Gasket, Frame End Cover
2-12 95077798 Nut-Hex
2-13 95716890 Lockwasher, Spring
2-14 95053682 Capscrew-Hex
2-15 30212906 Wheel, V-Belt
2-16 37007689 Valve, Pilot
2-17 37002417 Pin Thrust Assembly
2-18 90799289 Lockwire
2-19 95044111 Capscrew-Hex Head
2-20 30210264 Cap Crankpin Assembly
2-21 32006587 * Lockwire
2-22 30215008 * Pin, Centrifugal Unloader
2-23 30221725 * Weight, Centrifugal Unloader
2-24 30216118 * Plunger, Centrifugal Unloader
2-25 30416978 * Spring, Centrifugal Unloader
2-26 30210454 * Body, Crankpin Cap
2-27 32004145 Rod, Connecting
2-28 95227302 Capscrew-Hex Head
2-29 95674651 Gasket-Copper Washer
2-30 32027914 Cover Shaft End Assembly
2-31 32204521 * Seal, Oil
2-32 30295034 Gasket, Shaft End Cover
2-33 30211577 Crankshaft - Complete
2-34 30289813 * Bushing, Crankpin
2-35 95433173 * Key, Woodruff
2-36 30222327 Frame, Compressor
Optional Items Detail A
6-38 30285605 Baffle, Low Oil Level Switch
6-39 32201527 Switch Low Oil Level



Details

  • type: product
  • SKU: 23102
