Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 15T2

PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 15T2 from India.

View PDF

Product

  • Page 1

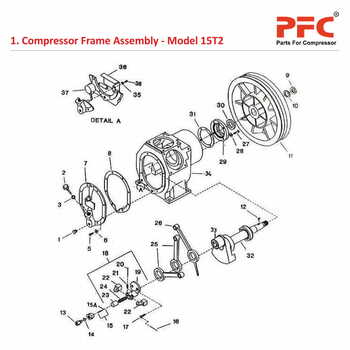

1. Compressor Frame Assembly

Sr.No Ref. Part Number Description
2-1 95344651 Plug Pipe Hex Head 1/2"
2-2 30289003 Plug Oil Filler - Complete
2-3 95018149 "O" Ring
2-5 95035333 Capscrew Hex 3/8" X 1"
2-6 95674677 Gasket - Copper Washer
2-7 37128089 Cover, Frame End
2-8 30439285 Gasket, Frame End Cover
2-9 30287668 Nut - Hex 1-3/8 UNF
2-10 95265690 Lockwasher, Spring 1-3/8
2-11 32177180 Wheel, V-Belt
2-12 95083721 Key, Woodruff
2-13 37113701 Valve, Pilot
2-14 30346597 Washer, Copper
2-15 32218406 Pin Assly., Thrust
2-15A 95022695 "O" Ring
2-16 32061293 Lockwire, 20 GAX5"
2-17 95101929 Capscrew Hex-3/8-16X1"
2-18 30210272 Cap Assembly, Crankpin
2-19 30210322 Body, Crankpin
2-20 90799271 Lockwire 18 GAX5"
2-21 30214951 Pin Centrifugal Unloader Weight
2-22 30220875 Weight, Centri-fugal Unloader
2-23 30285688 Plunger, Centri-fugal Unloader
2-24 30815898 Spring, Centri-fugal Unloader
2-25 32003659 Rod, Connecting
2-26 32003642 Rod, Connecting
2-27 95035333 Capscrew Hex 3/8 x 1"
2-28 95674677 Gasket - Copper Washer
2-29 32301582 Cover, Shaft End
2-30 32204596 Seal, Oil Viton O.D.
2-31 30294961 Gasket - Shaft End Cover
2-32 70240933 Crankshaft Assembly with Bearing+Key+Nut
2-32A 32314379 Crankshaft Assembly with Brg.
2-33 32295875 Bush Crankpin
2-34 32270621 Frame Compressor
Detail  A
2-35 32035479 Washer, Spring - 1/4-20 1/2
2-36 32304347 Baffle, Low Oil Level Switch
2-38 65053070 Capscrew Hex 1/4 - 20 X 1/2
Optional Equipment
2-37 70235262 Switch Low Oil Level
2-38 95200333 Plug, Pipe Hex Head 3/4 NPT
