Description
Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 10T3NLM
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 10T3NLM from India
Product
- Page 1

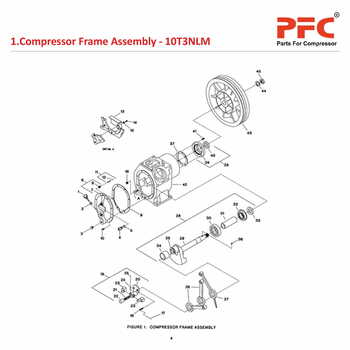

Compressor Frame Assembly
| Ref. No. | Part No. | Description |
| 1-1 | 32222465 | Plug, Oil Gauge |
| 1-2 | 32225476 | 0-Ring, Oil Gauge |
| 1-3 | 95033445 | Plug, Pipe - Hex Head - 1/2" |
| 1-4 | 32250144 | Assembly, Pilot Valve |
| 1-5 | 32225500 | Washer, Copper - Pilot Valve |
| 1-6 | 32222499 | Assembly, Frame End Cover |
| 1-7 | 32222424 | Cover, Frame End |
| 1-8 | 32222432 | Bushing, Pilot Valve |
| 1-9 | 30439269 | Gasket, Frame End Cover |
| 1-10 | 32225187 | Capscrew - M10 X 25 |
| 1-11 | 32255127 | Assembly, Thrust Pin |
| 1-12 | 32225492 | 0-Ring, Thrust Pin |
| 1-13 | 30290043 | Baffle, Low Oil Level Switch |
| 1-14 | 32225203 | Capscrew - M6 X 10 |
| 1-15 | 32225302 | Washer, Lock - 6mm |
| 1-16 | 32179020 | Plug, Pipe - Countersunk Hex Head |
| 1-17 | 37605193 | Lockwire - 12ga |
| 1-18 | 32225179 | Capscrew - M10 X 20 |
| 1-19 | 32222812 | Assembly, Crankpin Cap |
| 1-20 | 32222457 | Body, Crankpin Cap |
| 1-21 | 30815898 | Spring, Centrifugal Unloader |
| 1-22 | 32222440 | Plunger, Centrifugal Unloader |
| 1-23 | 30220875 | Weight, Centrifugal Unloader |
| 1-24 | 30214951 | Pin, Centrifugal Unloader Weight |
| 1-25 | 37605185 | Lockwire - 12ga |
| 1-26 | 32222382 | Rod, Connecting - Low Pressure |
| 1-27 | 32222374 | Rod, Connecting - High Pressure |
| 1-28 | 32222762 | Assembly, Crankshaft |
| 1-29 | NSS | Assembly, Disc & Shaft |
| 1-30 | 95305660 | Bearing, Ball |
| 1-31 | 30218424 | Spacer, Crankshaft/Bearing |
| 1-32 | 95214003 | Bearing, Ball - W/Snap Ring |
| 1-33 | 30217004 | Ring, Bearing Retainer |
| 1-34 | 37002342 | Bushing, Crankpin |
| 1-35 | 32185803 | Loctite 609 - Tube- For Crankpin Bushing Assembly |
| 1-36 | 32226144 | Key, Woodruff |
| 1-37 | 30295174 | Gasket, Shaft End Cover |
| 1-38 | 32222606 | Assembly, Shaft End Cover |
| 1-39 | NSS | Cover, Shaft End |
| 1-40 | 32204554 | Seal, Oil |
| 1-41 | 32225187 | Capscrew - M10 X 25 |
| 1-42 | 32222515 | Frame, Compressor |
| 1-43 | 32222770 | Wheel, V-Belt |
| 1-44 | 32225369 | Washer, Lock - Beltwheel |
| 1-45 | 32222523 | Nut - Beltwheel |
Details
- type: product
- SKU: 10T3NLM01
