Compressor Frame Assembly IR 15T Parts

Name: Compressor Frame Assembly IR 15T Parts
SKU: 15T02_Nothing
Availability: InStock

Description

Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 15T

PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 15T from India.

Product

Page 1

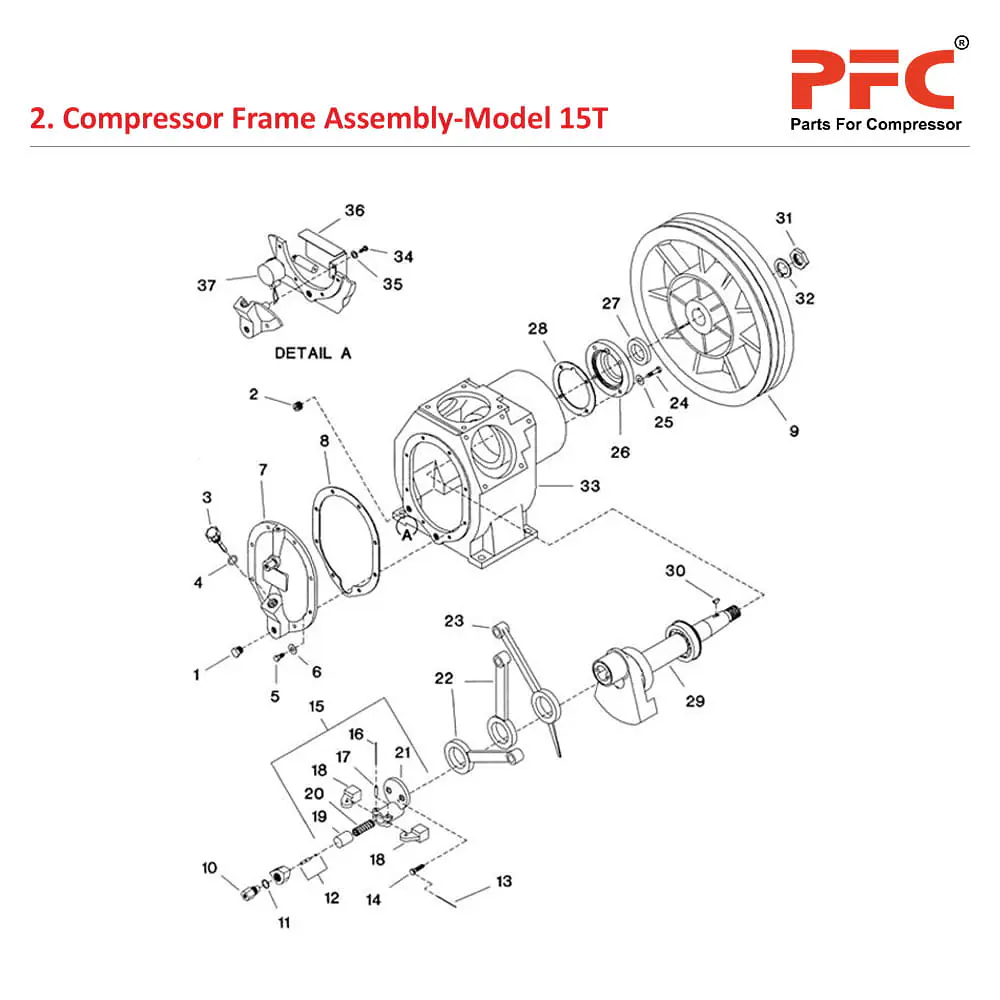

1. Compressor Frame Assembly

Sr.No	Ref. Part Number	Description
2-1	95078648	Plug Pipe Hex Head 1/2"
2-2	95344651	Plug Pipe square countersunk 1/2"
2-3	30389003	Plug oil filler - complete
2-4	95018149	* O Ring
2-5	95053146	Capscrew Hex 3/8 -16 X 7/8"
2-6	95674677	Gasket - Copper Washer
2-7	37128089	Cover, Frame End
2-8	30439285	Gasket, Frame End Cover
2-9	32003667	Wheel, V-Belt
2-10	37113701	Valve, Pilot
2-11	30346597	Washer, Copper
2-12	32028706	Pin Assly., Thrust
2-13	90799289	Lockwire, 20 GAX5"
2-14	95101929	Capscrew -3/8-16X1"
2-15	30210272	Cap Assembly, Crankpin
2-16	90799271	* Lockwire, 12 GAX4"
2-17	30214951	* Pin Centrifugal Unloader Weight
2-18	30220875	* Weight, Centri-fugal Unloader
2-19	30285688	* Plunger, Centri-fugal Unloader
2-20	30815898	* Spring, Centri-fugal Unloader
2-21	30210322	* Body, crankpin cap
2-22	32003659	Rod, Connecting - low pressure
2-23	32003642	Rod, Connecting - high pressure
2-24	95053146	Capscrew Hex 3/8 -16 X 7/8"
2-25	95674677	Gasket - Copper Washer
2-26	37128071	Cover, Shaft End
2-27	32204562	Seal, Oil
2-28	30294961	Gasket - Shaft End Cover
2-29	30211601	Crankshaft - Complete
2-30	95083721	* Key, woodruff
2-31	30287668	* Nut, Hex
2-32	95265690	* Lockwasher, spring
2-33	32182602	Frame, compressor
2-34	95053070	Capscrew Hex 1/4 - 20 X 1/2
2-35	95043196	* Lockwasher, spring - 1/4
2-36	30290043	Baffle, Low Oil Level Switch
Optional Equipment
2-37	32201527	Switch, low oil level - nema 1
2-37	32217390	Switch, low oil level - nema 7
