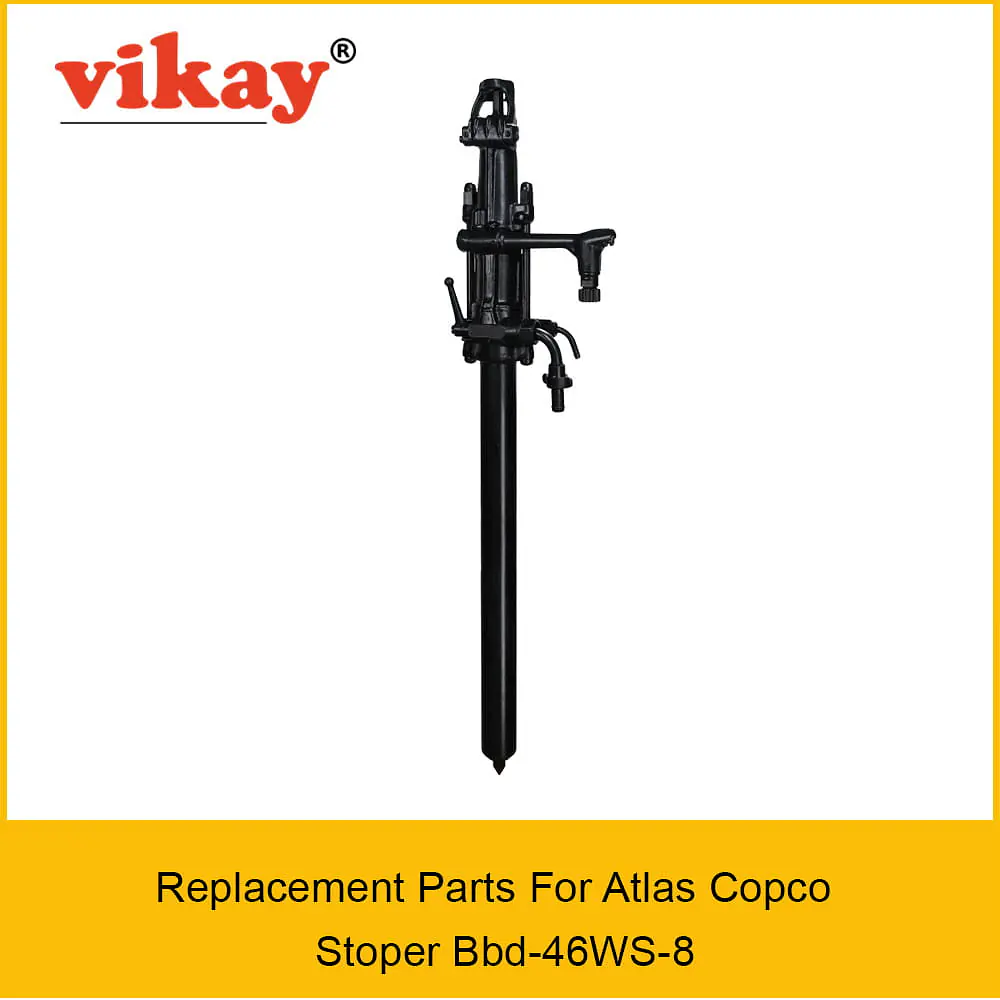

Bbd-46WS-8 Stopper Atlas Copco Replacement Parts

Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Atlas Copco Stoper Bbd-46WS-8 from India

Product

Bbd-46WS/WR Stoper Parts

Sr. No Description   Ref. Part No.
1 Back head, complete (2-12,13,16-24)   3131014080
2  - Back Head       ---
3  - Valve   3131000200
4  - Throttle lever   3121006500
5  - Conical nut   3006873400
6  - Pawl pin   3121006600
7  - Spring   3121006700
8  - Valve pin   3121007000
9  - Packing   3106967000
10  - Bushing   3121007100
11  - O Ring   3121007200
12  - Valve seat   3106967300
13 Valve body, complete (14-15)   3115098280
14 Valve body     ---
15 O Ring   0663211200
16 Conical spring   3100924021
17 Packing   3106967500
18 Adapter   3106967600
19 Inlet nipple   3106874700
20 Adapter   3121006800
21 Adapter   3100964200
22 Adapter   3121001000
23 Strainer   3121001100
24 Packing   3121001200
25 Packing   3100965300
26 Hose nipple   3100965400
27 Adapter   3100965200
28 Air flushing tube   3131014200
29 Water flushing tube   3121003800
30 Packing   3121060200
31 Packing   3100964600
32 Guide ring   3121077600
33 Adapter   3131014100
34 Packing   3101414600
35 O Ring   0663613600
36 Drill steel retainer   3121085100
37 Cover   3121010700
38 O Ring   0663211400
39 Spring pin   3100966500
40 Main valve   3121048600
41 Cylinder   3131000400
42 Piston   3121001500
43 Retainer pin   3121085200
44 Intermediate part, complete (45-46)   3121008580
45  - Intermediate part     ---
46 Bushing   3121008600
47 Throttle lever   3131000500
48 Spring   3131000600
49 Valve sleeve   3131000700
50 Valve pin   3131000800
51 Valve body   3131000900
52 O Ring   0663212400
53 Conical nut   3131001700
54 Valve, complete (55-56)   3131001080
55  - Valve      ---
56  - Valve Liner     ---
57 O Ring   0663212800
58 Shaft   3131001100
59 Wheel   3131001200
60 Nut   3131001300
61 Adapter   3131001400
62 Washer   3131001500
63 Spring   3131001600
64 O Ring   0663212200
65 Buffer plate   3121002900
66 Buffer   3121003000
67 Ratchet wheel   3121088000
68 Rifle nut   3121089600
69 Pin   0102027900
70 Pawl, complete (71-73)   3115920190
71 - Pawl   3101315900
72 - Pressure spring   3121002000
73 - Pawl pin   3121002100
74 Side bolt nut   3121087200
75 Hose nipple   9000032600
76 Wing nut   9000033900
77 Spring pin   0108339200
78 Rotation chuck, complete (79-80)   3121500180
79  - Rotation chuck      ---
80  -  Rotation chuck bushing 22  x 108 mm   3121084600
81 Chuck nut   3121010100
82 Front head   3121010200
83 Feed cylinder, complete (84-85)   3132000180
84  - Feed cylinder        ---
85  - Bushing   3132000500
86 Seal   3162097600
87 Nut   3132001600
88 Washer   3132001700
89 Brake ring   3132001800
90 Back up Ring   3132001900
91 Spike   3132002000
92 Piston rod   3132000800
93 Piston   3132001400
94 Side bolt   3131002100
95 Data Plate       ---
96 Safety label   3310160200
