Bare Compressor For Ingersoll Rand Type 30 - Model 7100

PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Bare Compressor For 7100 Ingersoll Rand Type 30 - Model 7100 from India.

 View PDF

Product

  • Page 1

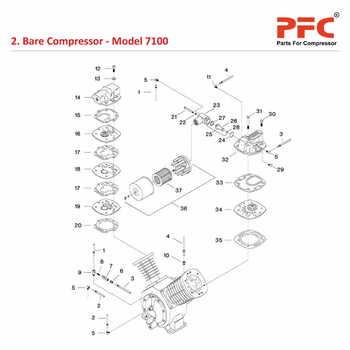

2.1 Bare Compressor

Sr.No Ref. Part Number Description
2-1 32203440 Ass'y, Tube - Frame End cover/Unloader
    Cover - 5/16" Dia (If Supplied)
2-2 32183717 Ass'y, Tube - Pilot Valve/2nd Stage Manifold
    5/16" Dia (If Supplied)
2-3 32200529 Ass'y, Tube - Check Valve/Right -Hand Head
    5/16" Dia (If Supplied)
2-4 32200560 Ass'y, Tube Breather - 3/8" Dia
2-5 95110441 Elbow, Tube - 5/16 X 1/4" (If Supplied)
2-6 95082483 Connector, Tube 5/16" X 1/8" (If Supplied)
2-7 32001141 * Valve, Check (If supplied)
2-8 95796017 Nipple, close -1/8 X 3/4" (if Supplied)
2-9 32203242 Connector, Tube 5/16" X 1/4" Male Long
    (If Supplied)
2-10 95083143 Connector, Male - 3/8" X 1/4"
2-11 95040143 Elbow, Tube -  3/8" X 1/4"
2-12 95104196 Capscrew - Hex 1/2-13 X 2"
2-13 32060006 Washer, Flat - 1/2"
2-14 32172199 Head, Second stage - High Pressure
2-15 32252801 Gasket, Head - Second Stage
2-16 32228322 Ass'y, Valve Plate - Second stage
    (see Fig. C, Page 8)
2-17 32252819 Gasket, Spacer Plate - Second stage
2-18 32228280 Plate, Spacer -Second Stage
2-19 32228272 Plate, Dics - Second Stage
2-20 32252827 Gasket, Valve Plate - Second Stage
2-21 95035259 Capscrew - Hex 5/16-1/8 X 3-3/4"
2-22 95043188 Lockwasher, Spring -5/16"
2-23 32174336 Cover, Unloader
2-24 95026183 O-Ring
2-25 32256257 Ass'y, Unloader Piston (If Supplied)
2-26 NSS *Piston, Unloader
2-27 32254740 *Seal, Unloader Piston
2-28 32188385 * O-Ring, Unloader Piston
2-29 32256356 Elbow, Orifice-Unloader (If Supplied)
2-30 95104188 Capscrew - Hex 1/2-13 X 1-3/4"
2-31 95104279 Capscrew - Hex 1/2-13 X 4-1/4"
2-32 32172207 Head, First stage - Low Pressure
2-33 32172926 Gasket, Head - First Stage
2-34 32228330 Ass'y,Valve Plate-First stage (see fig.D, pg. 9
2-35 32172942 Gasket, Valve Plate - First Stage
2-36 32109779 Filter, Inlet - Complete
2-37 32012957 * Element, Filter - 10 Micron
