Bare Compressor IR 5T2 NL Air Compressor Parts

availability: This product is not available in the selected currency.
  • Nothing

Description

Bare Compressor For Ingersoll Rand Type 30 - Model 5T2NL

PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Bare Compressor For Ingersoll Rand Type 30 - Model 5T2NL from India.

 View PDF



Product

  • Page 1

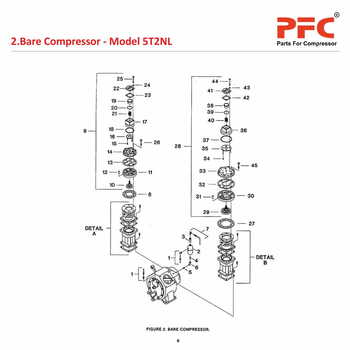

Bare Compressor

Ref. No. Part No. Description
2-1 32241523 Assembly, Tube - Pilot Valve/Breather - Complete1.
2-2 32225534 Bottle, Breather Trap
2-3 32225526 Plug, Breather Element
2-4 32230864 Nipple, Hex - 3/8"
2-5 95691077 Nipple, Close - 3/8 X 1'
2-6 95030672 Elbow, Pipe - 3/8' - 45°
2-7 32241549 Assembly, Tube - Breather Trap - Completet
2-8 30294508 Gasket, Airhead - High Pressure
2-9 32226318 Assembly, Airhead/Valve - High Pressure
2-10 37004827 Valve, 35 - Complete (See Figure 3, Page 8)
2-11 32222705 Airhead, Bottom
2-12 37114030 Dowel
2-13 37007754 Gasket, Airhead - Top/Bottom
2-14 32226177 Airhead, Top
2-15 32012395 Spring, Unloader Pin
2-16 32016578 Plate, Unloader - Complete
2-17 37129889 Body, Unloader
2-18 30294680 Gasket, Unloader Body
2-19 32222507 Piston, Unloader
2-20 32225468 0-Ring, Unloader Piston
2-21 30416853 Spring, Unloader Piston
2-22 37129905 Cover, Unloader
2-23 30294656 Gasket, Unloader Cover
2-24 32225286 Washer - M10
2-25 32225138 Capscrew - M10 X 85
2-26 32225146 Capscrew - M12 X 75
2-27 30294193 Gasket, Airhead - Low Pressure
2-28 32226300 Assembly, Airhead/Valve - Low Pressure
2-29 37004843 Valve, 50 - Complete (See Figure 4, Page 9)
2-30 32222739 Airhead, Bottom
2-31 37114030 Dowel
2-32 37007747 Gasket, Airhead - Top/Bottom
2-33 32226185 Airhead, Top
2-34 32012395 Spring, Unloader Pin
2-35 32222788 Plate, Unloader - Complete
2.36 37129947 Body, Unloader
2-37 30294698 Gasket, Unloader Body
2-38 32222507 Piston, Unloader
2-39 32225468 0-Ring, Unloader Piston
2-40 30416853 Spring, Unloader Piston
2-41 37129905 Cover, Unloader
2-42 30294656 Gasket, Unloader Cover
2-43 32225286 Washer - M10
2-44 32225138 Capscrew - M10 X 90
2-45 32225146 Capscrew - M12 X 75

Details

  • type: product
  • SKU: 5T2NL02
