Bare Compressor IR 2540 Air Compressor Parts

availability: This product is not available in the selected currency.
  • Nothing

Description

Bare Compressor For Ingersoll Rand Type 30 - Model 2540

PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Bare Compressor For Ingersoll Rand Type 30 - Model 2540 from India.

View PDF

Product

  • Page 1

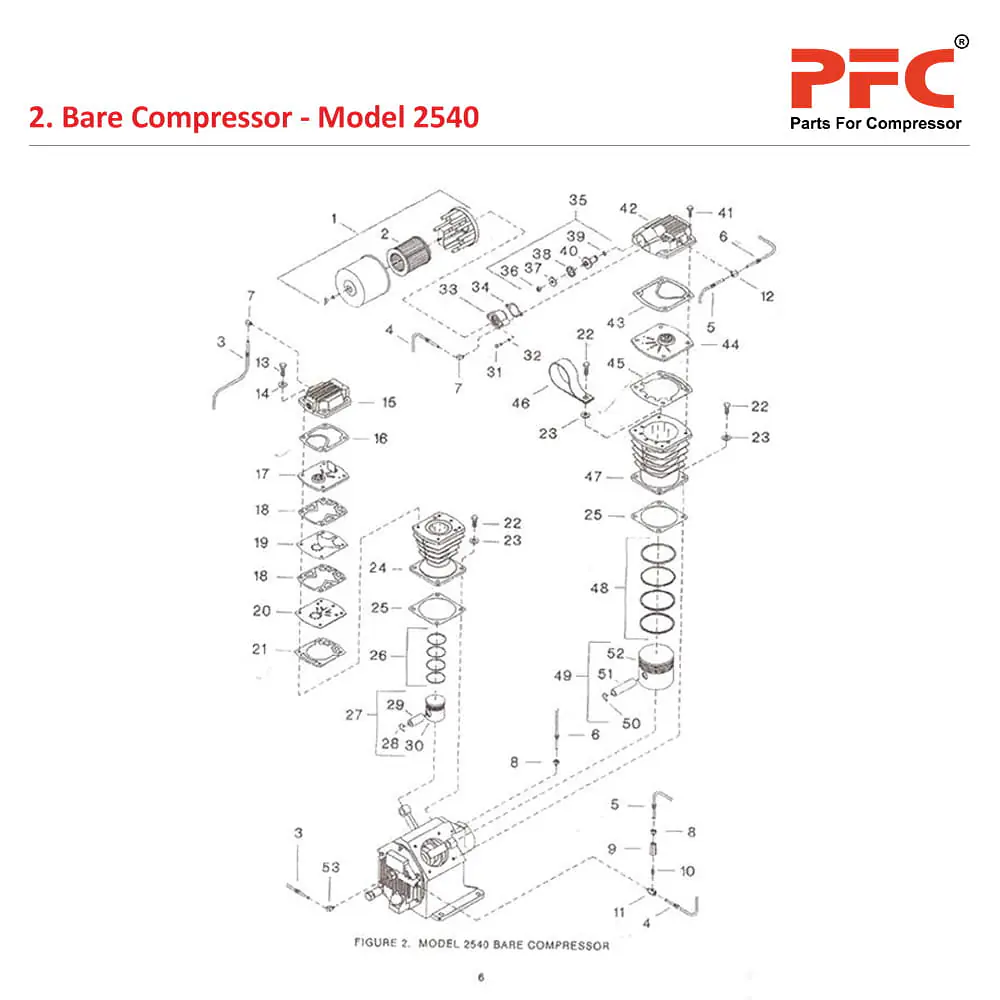

Bare Compressor Model 2540

Ref. No. Part No. Description
2-1 Filter Air Inlet Complete 32230542
2-2 Element Filter 10 Micron 32012957
2-3 Tube Assembly Pilot Valve/High Pressure Head 32188393
2-4 Tube Assembly Frame End Cover Tee/Inlet 32201444
2-5 Tube Assembly Fec Check Valve/Lp Airhead 32201451
2-6 Tube Assembly Breather 32188633
2-7 Elbow, Tube 5/16 X 1/8" 95C31860
2-8 Connector, Tube 5/16 X 1/8" 95082483
2-9 Valve, Check 32001141
2-10 Nipple, Close - 1/8 X 3/4 95796017
2-11 Connector Male 5/16 X 1/4" 32203242
2-12 Tee Male Branch 5/16 X 1/8" 95007522
2-13 Capscrew Hex 1/2 - 13x2" 95104196
2-14 Washer, Flat-1/2" 32060006
2-15 Airhead, 2nd Stage High Pressure 32175754
2-16 Gasket, Airhead, 2nd Stage, High Pressure 32252777
2-17 Assembly, Valve-High Pressure (See Fig 4, Pg. 8) 32229817
2-18 Gasket, Spacerplate - High Pressure 32252793
2-19 Plate, Spacer - High Pressure 32229791
2-20 Plate, Disc - High Pressure 32229783
2-21 Gasket, Valve Plate - High Pressure 32252785
2-22 Capscrew - Hex 1/2-13 X 1-1/4" 95053567
2-23 Gasket, Copperwasher - 1/2" 95674701
2-24 Cylinder, Air 2-3/4" - 2nd Stage 32177172
2-25 Gasket, Flange 30294201
2-26 Set Ring 2-3/4" 32198335
2-27 Piston, Air 2-3/4" 2nd Stage Complete 32204950
2-28 Ring Lock 30287791
2-29 Pin Piston 32182818
2-30 Piston Air 2-3/4" NSS
2-31 Capscrew-Hex 5/16-18 X 1-3/4" 95079927
2-32 Lockwasher Spring -5/16" 95043188
2-33 Cover, Unloader 1-1/4" Npt 32230633
2-34 Gasket, Unloader Cover 32182829
2-35 Assembly, Piston Unloader 32229833
2-36 Locknut - 1/2-20 32229684
2-37 Plate, Washer Retaining 32229478
2-38 Seal, Unloader Piston 32172629
2-39 0-Ring, Unloader Piston 32188385
2-40 Piston, Unloader NSS
2-41 Capscrew Hex 1/2-13 X 1-3/4" 95104170
2-42 Airhead, 1st Stage - Low Pressure 32198533
2-43 Gasket, Airhead, 1st Stage - Low Pressure 32175663
2-44 Assembly, Valve-Low Pressure (See Fig.5) 32228389
2-45 Gasket, Valve Plate - Low Pressure 32233850
2-46 Strap, Lifting NSS
2-47 Cylinder, Air 5" 1st Stage 32177669
2-48 Set, Ring 5" 32198376
2-49 Piston, Air 5" 1st Stage - Complete 30287825
2-50 Ring Lock 30287791
2-51 Pin Piston 30297022
2-52 Piston, Air 5" NSS
2-53 Elbow, Tube 5/16 X 1/4" 95110441

Details

  • type: product
  • SKU: 254002
