Air Control Traction Left Replacement

Vikay is a global supplier of new aftermarket replacement parts - Air Control Traction Left for Atlas Copco Mucking Loader Cavo-310 from India.

View PDF

 Product

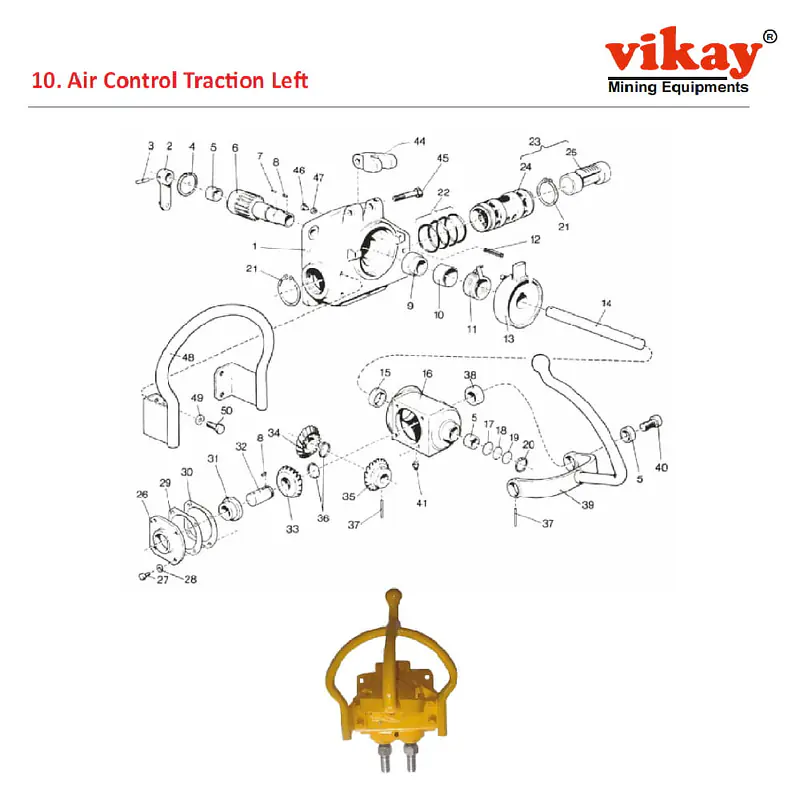

Air Control Traction Left

No. Description   Modified   Ref. Part No.
- Air Control left Complete       5032015584
1 - Valve Housing (Not Delivered Separately)       5032015501
2 - Lever       5032026300
3 - Pin       0108133000
4 - Circlip       0335214600
5 - Bushing   0500314400 * M10328
6 - Pinion       5032026400
7 - Key       0337255700
8 - Key       0337255000
9 - Bushing       5032014900
10 - Sleeve       5032014800
11 - Spring       5032014700
12 - Pin       0108136200
13 - Cover       5032026500
14 - Shaft (17 mm.)       5032026200
15 - Bushing       5032024600
16 - Housing       5032027700
17 - Shim 0.5 MM       5032025700
18 - Shim 0.2 MM       5032025800
19 - Shim 0.1 MM       5032025900
20 - Circlip       0335212700
21 - Circlip       0335114600
22 - O Ring       0663613500
23 - Bushing with Valve       5032014680
24 -- Bushing (Not Delivered Separately)       -
25 -- Valve (Not Delivered Separately)       -
26 - Cover   5032024500 * M10349
27 - Screw       0147124600
28 - Spring Washer       0333211900
29 - Shim 0.1 MM       5032025200
30 - Shim 0.2 MM       5032025300
31 - Bushing       0500125300
32 - Shaft       5032024800
33 - Gear Left       5032025100
34 - Gear Right       5032025400
35 - Gear Right (17 mm. )       5032025500
36 - Circlip       0335112700
37 - Pin       0108133200
38 - Spacer       5032026000
39 - Lever       5032026900
40 - Screw   5032026100 * M10363
41 - Grease Nipple/Lubricating Nipple   0544216200 * M9040
44 - Locking Clamp   5032031600 * M10367
45 - Bolt   5032027900 * M10368
46 - Plug       0686810100
47 - Gasket/Copper Gasket       0653104100
48 - Hand Support       5032024700
49 - Spring Washer       0333213600
50 - Screw       0147139900
