7.5 HP Air Compressor Pump
₹0.00
7.5 HP Air Compressor Pump
₹0.00

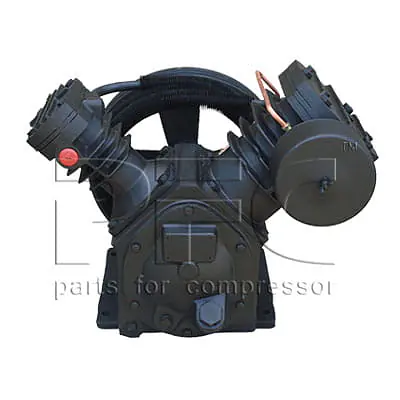

7.5 HP Two Stage Bare Air Compressor Pumps Model VK 303
PFC Parts for Compressor is a global supplier of 7.5 HP Two Stage Reciprocating Bare Air Compressor Pumps Model VK 303, from India
The Two stage Reciprocating Bare compressor Pumps are rugged packages for use either as a total air system for small industrial installations or a backup system in major installation. These compressors are used where the pressure requirement is more than 7kg / cm2 & up to 14kg/ cm2 maximum air pressure.
| Model | VK 303 |
| Motor hp | 7.5 |
| No. of Cylinders | 2 |
| Piston Displacement cfm | 26.4 |
| Maximum Pressure | 175psig | 12.3Kg/cm²g |
| Air Receiver (Ltr) | 225 |
Scope of Supply
Bare Pump (Compressor / Vacuum Pumps) with Flywheel, without any Accessories.
# Parts are interchangeable IR Type 30 Model 253
Since approvement are made from time to time, the illustration and specifications are subject to change without notice
