Compl. Central 0180696000 Replacement Parts

Vikay is a global supplier of new aftermarket replacement parts - Compl. Central 0180696000 for Alimak Pneumatic Raise Climber from India

Product

  • Page 1

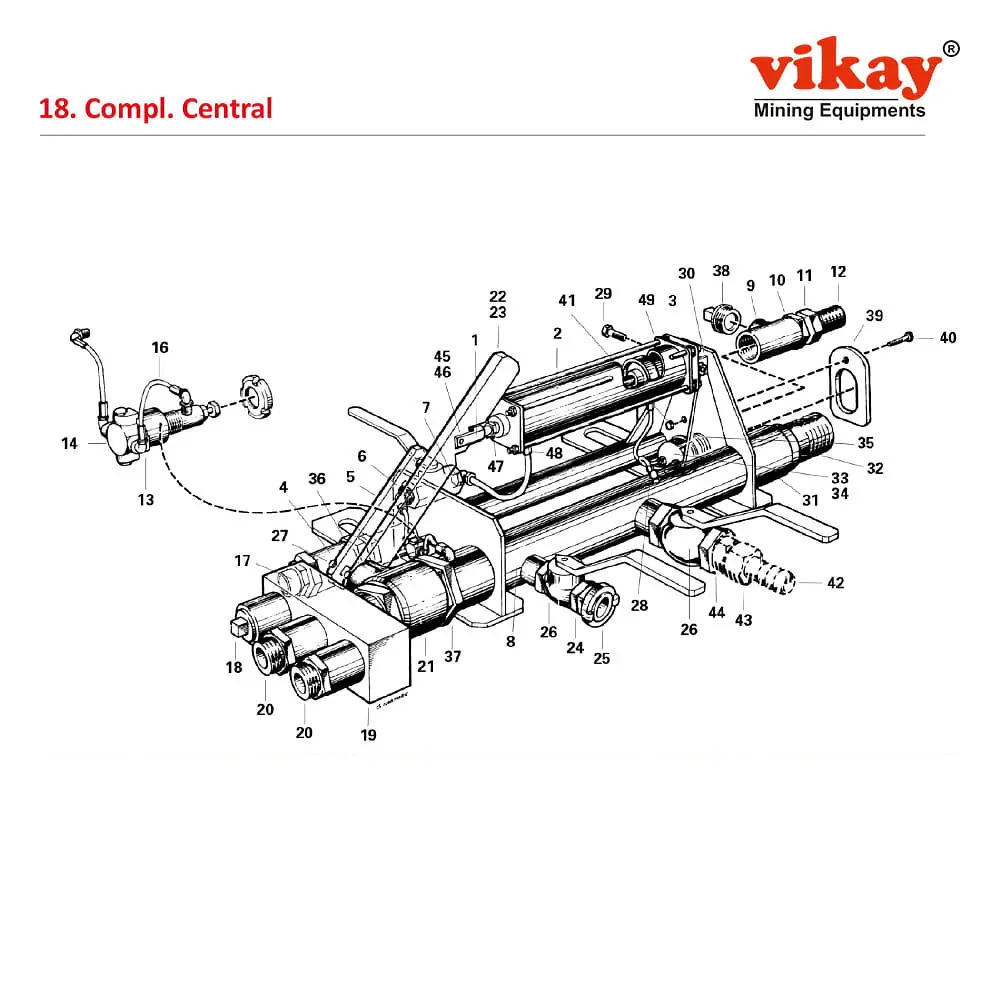

Compl. Central 0180696000

No. Description   Designation   Ref. Part No.
1 49 Compl. central   LVL   0180696000
1 Piston rod coupling       9022608000
2 Double acting       3000965128
  cylinder
3 Bracket       9022609000
4 Cock       3001027501
5 Handle       0480713000
6 Bushing       3000840304
7 Air cock       3001027211
8 Pipe central       0280698000
9 T-tube       3000837516
10 Hexagon nipple       0415998000
11 Nut       0415997000
12 Hose nipple       0416002000
13 Angular coupling       3002017085
14 Pressure regulator       0481740000
15
16 Superpolyamid       3001042101
  pipes
17 Hexagon nipple       3001527201
18 Pipe plug       3000840516
19 Pipe       0480707000
20 Hexagon nipple       0415998000
21 Ball valve       3001027205
22 Handle       9090616000
23 Screw   M6S 6x50-8.8-fz   3000071380
24 Bushing       3000840325
25 Toothed coupling       3000934103
26 Valve       3001022107
27 Screw   M6S 6x40   3000071378
28 Angular coupling       3002017085
29 Screw   M6S 12x65   3000071545
30 Lock nut   L-K M6M12   3000438122
31 Sleeve       3000837619
32 Hose nipple       0476046000
33 Coupling       3002017005
34 Cover       0480714000
35 Hexagon nipple       0415998000
36 Pipe nut       3000837816
37 Pipe nut       3000837819
38 Pipe plug       3000840516
39 Lock washer       0484945000
40 Screw   M6S 6x20   3000071370
41 Lock nut   L-K M6M6   3000438116
42 Hose nipple       3000969177
43 Nut       3000970335
44 Hexagon nipple       3000969347
45 Screw   M 10x50   3000071501
46 Lock nut   L-K M6M 10   3000438120
47 Nut   M16x1,5   3000084324
48 Coupling       3002017005
49 Screw   M6x16   3000071368
