Cement Injection Pump

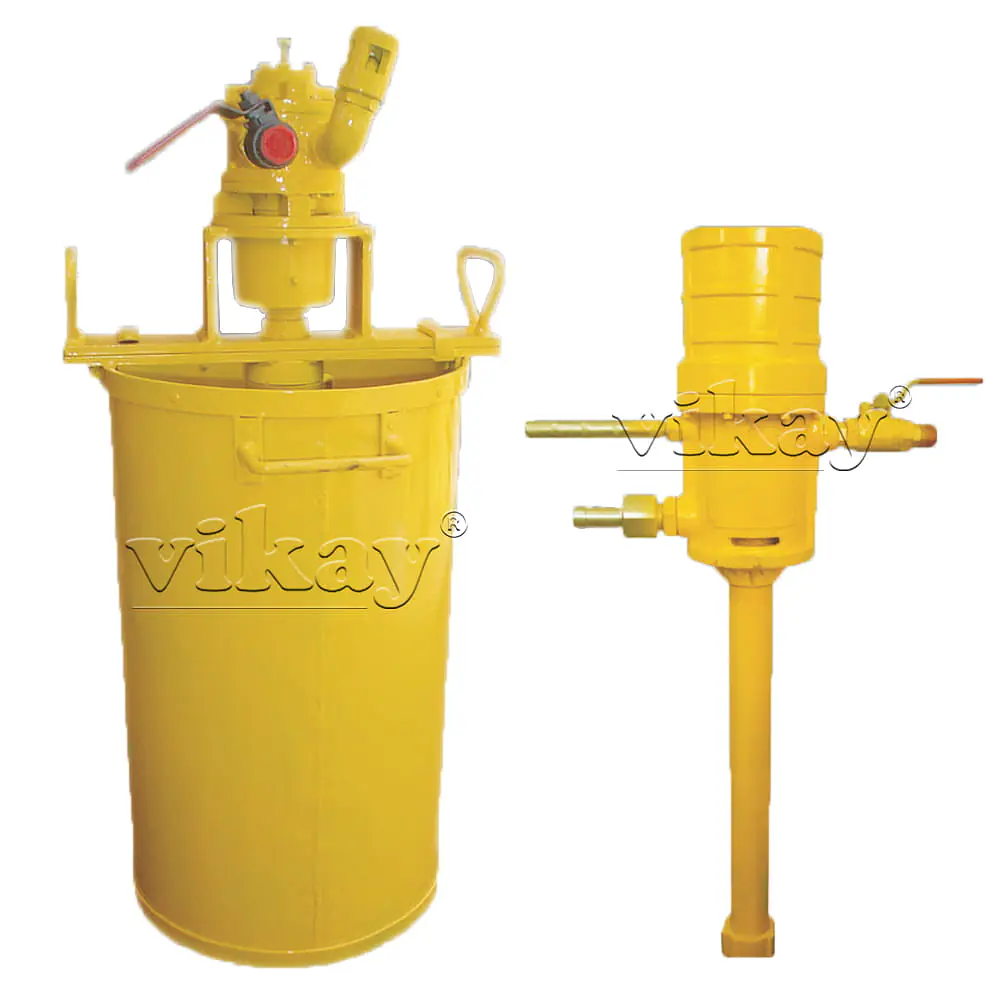

Pneumatic Cement Injection Pump VK-CIP

View PDF

Vikay Pneumatic Cement Injection Pump for Underground Mines

The Pneumatic Cement Injection Pump is used in Underground Mines, specially designed for Cement grouts & spraying water based Binder, where low volume and high pressure is required.

Salient Features
The major attraction of Pump is its portability, light weight, & rugged enough to withstand the normal mines handling, easy to maintain in case of any blockages

Applications

  • Roof Bolung & Cable Grouting Fully Grouted Bolts & anchors installed by pregrouting or post injection
  • Long hole grouting from 3m to 20m, can be injected with cemetitious or other mixer (water based resins etc) in ratio from 1 : 033 upto 1 : 2
  • Ventilation control by spraying on to walls and prefabricated meshes.
  • Injection of Grouts, set props with a modification to produce high pressure setting up to 500 psi

Technical Data

Weight 22 Kgs for Pump
Dimension (L x W x H)   8- x 24- x 44- (L x W x H)
Air Pressure 90 - 100 cfm-  @ 70 - 80 psig
Operation Control One Valve Operation

Scope of Supply
A special grout mixer including 2 No. drums of 75 litres capacity, with mixing blades, air motor and torque multiplying speed reduction gear box

Since approvement are made from time to time, the illustration and specifications are subject to change without notice.
