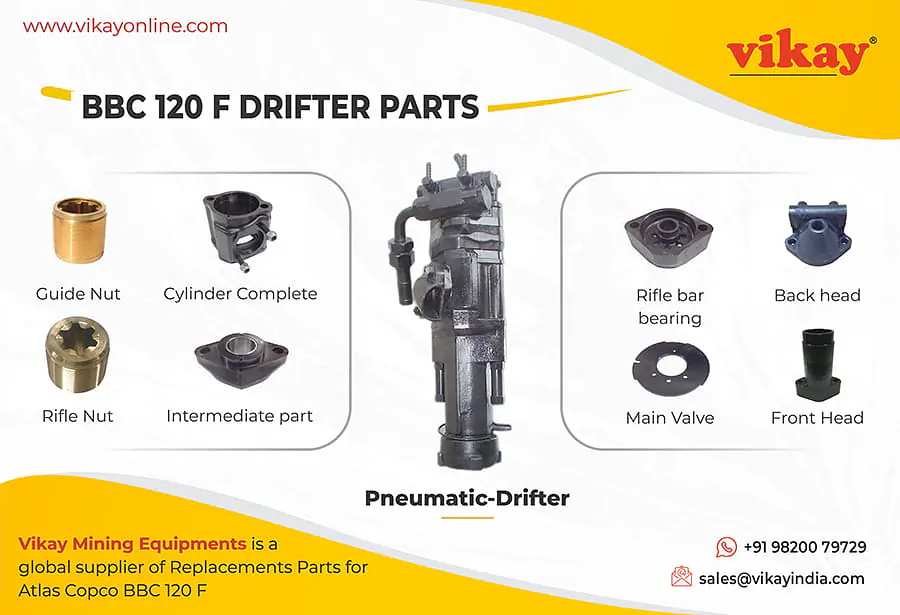

BBC-120F Drifter Replacment Parts

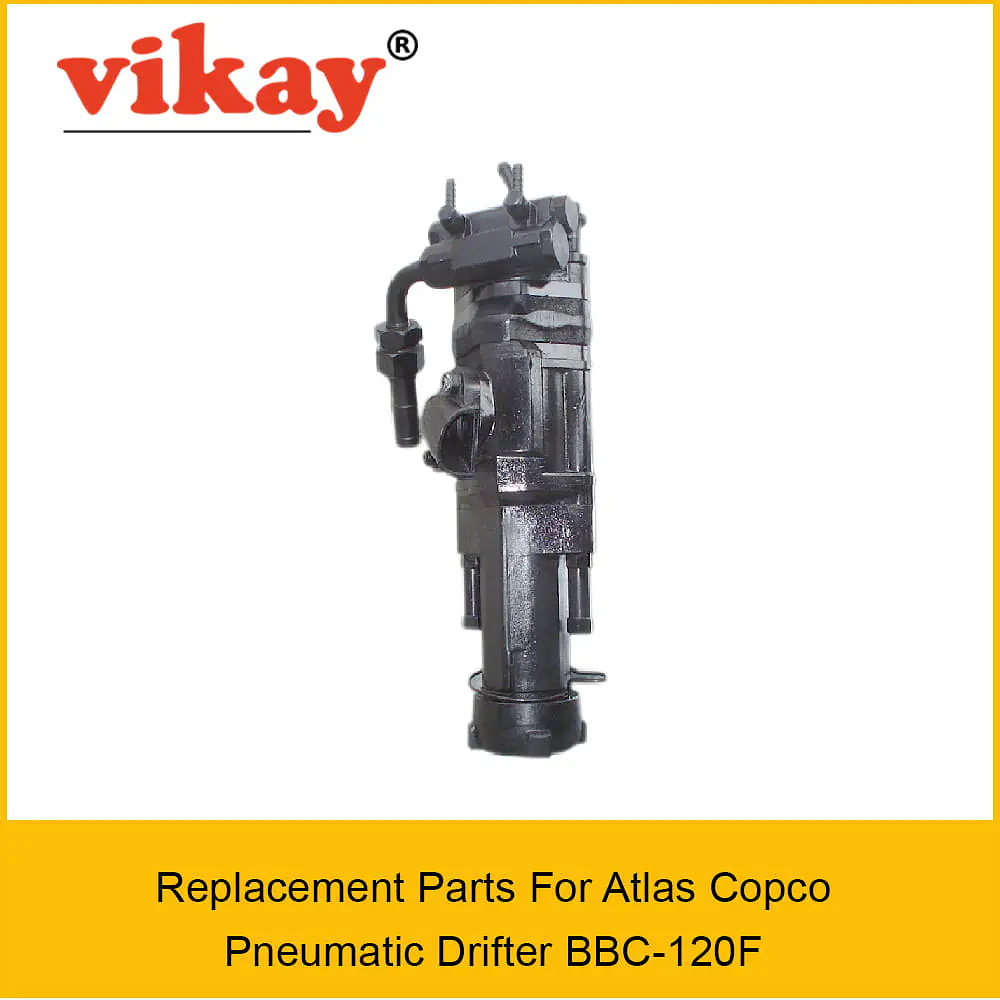

Replacement Parts for Atlas Copco Pneumatic Drifter BBC-120F
Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Atlas Copco Pneumatic Drifter BBC-120F from India.
Product
- Page 1
- 2
1. BBC-120F Drifter Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Cover | 3161023000 | |
| 2 | Lock Spring | 3161099300 | |
| 3 | Stop Ring | 3161021500 | |
| 4 | Rotation Chuck | 3161021600 | |
| 5 | Front Head | 3161023100 | |
| - | Rotation chuck Complete | 3161032880 | |
| 6 | - Rotation chuck | --- | |
| 7 | - Rotation Chuck Bushing | 3161021800 | |
| 8 | Guide Nut | 3161032900 | |
| 9 | Nut | 3141007200 | |
| 10 | Nut | 3141007100 | |
| - | Intermediate Part Complete | 3161081980 | |
| 11 | - Intermediate Part | --- | |
| 12 | - Bushing | 3161023500 | |
| - | Piston With Rifle Nut Complete | 3161030780 | |
| 13 | - Piston | --- | |
| 14 | - Rifle Nut | 3161030800 | |
| 15 | Nut | 0291111400 | |
| 16 | Exhaust Guard | 3115012200 | |
| - | Cylinder Complete | 3161052480 | |
| 17 | - Cylinder | --- | |
| 18 | - Stud | 0196148100 | |
| - | Cover With Guide Pin Complete | 3141008780 | |
| 19 | - Cover | ||
| 20 | - Guide Pin | 3141008800 | |
| 21 | Main Valve | 3161033300 | |
| 22 | Rifle Bar Bearing | 3141009000 | |
| 23 | Rifle Bar | 3161036900 | |
| 24 | Pawls | 3161037000 | |
| 25 | Pawl Pin | 3141008300 | |
| 26 | Pawl Spring | 3115077400 | |
| 27 | Damper | 3161052500 | |
| 28 | Ratchet Box | 3161037700 | |
| 29 | Pawl Lifting Ring | 3161037800 | |
| 30 | Coupling Nut | 9000033500 | |
| 31 | Hose Nipple | 9000017700 | |
| 32 | Adapter | 9000048500 | |
| 33 | Adapter | 3000992200 | |
| 34 | Inlet Nipple | 3161007000 | |
| 35 | O Ring | 0663213200 | |
| 36 | Backhead | 3141009300 | |
| 37 | Pressure Screw | 3161082000 | |
| 38 | Banjo Connection | 3161022900 | |
| 39 | Plug | 3161006900 | |
| 40 | Operating Piston | 3141009500 | |
| 41 | Spring Guide | 3141009600 | |
| 42 | Pressure Spring | 3141009700 | |
| 43 | O Ring | 0663213200 | |
| 44 | Plug | 3141009800 | |
| 45 | Gasket | 3121047700 | |
| 46 | Side Bolt | 3141007000 | |
| 47 | Nut | 3141022400 | |
| 48 | Water Flushing Tube | 3161037600 | |
| 49 | Adapter | 3161082100 | |
| 50 | O Ring | 0663212400 | |
| 51 | Hose Nipple | 3161082200 | |
| 52 | Coupling Nut | 3161082300 |
2. Optional
| No. | Description | Ref. Part No. |
| - | Parts For Sealed Chuck 32 mm (1 1/4") Leyner Shank | |
| 3 | Stop Ring | 3161038300 |
| 4 | Rotation Chuck | 3161038200 |
| - | Rotation Chuck Complete | 3161032881 |
| 6 | - Rotation Chuck | |
| 7 | -Rotation Chuck bushing | 3161022600 |
| 8 | - Guide Nut | 3161032900 |
| - | - | |
| - | Only For Air Flushing | |
| - | Air Flushing Tube | 3161046600 |
| - | - | |
| - | Parts To Adjustable Exhaust Connection For 64 mm | |
| - | (2 ½") Hose, Especially For "Simba" | |
| - | Rubber Ring | 3161074200 |
| - | Nipple | 3161040800 |
| - | Lock Ring | 3161074100 |
| - | - | |
| - | Parts For Protecting When Drilling Upwards | |
| - | Rubber hood | 3161022600 |
| For BBC 120FZ | ||
| 1 | Cover | 3115223900 |
| 2 | O-Ring | 0663614500 |
| 3 | Front Head | 3115229100 |
| 4 | Side Bolt | 3115224000 |
| 5 | Washer | 3115028700 |
| 6 | Dome Nut | 3115028600 |
