3 1/2" Button Bit - 90 mm x BR3 Shank
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description

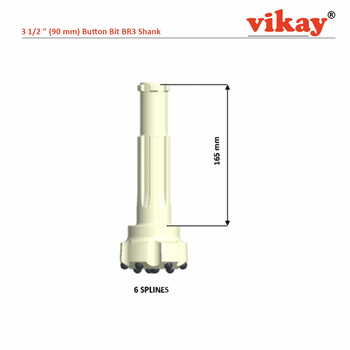

3 1/2 " (90 mm) Button Bit BR3 Shank
Vikay is a global supplier of new aftermarket replacement parts - 3 1/2 " (90 mm) Button Bit BR3 Shank from India.
Product
| Diameter | Gauge Buttons |
Button diameter (mm) |
Air holes | Weight | Product No. | |||
| Inch | mm | Gauge | Face | kg | lbs | |||
| Flat Face | ||||||||
| 3 1/2 | 90 | 7 | 13 | 11 | 2 | 5 | 11 | DB010209001S |
| 4 | 95 | 7 | 13 | 13 | 2 | 5.3 | 11.7 | DB010209501S |
| 4 1/2 | 100 | 8 | 13 | 13 | 2 | 5.8 | 12.8 | DB010210001S |
| 5 | 105 | 8 | 14 | 13 | 2 | 6 | 13.2 | DB010210501S |
| Concave | ||||||||
| 3 1/2 | 90 | 7 | 11 | 11 | 2 | 5 | 11 | DB010209002S |
| 4 | 95 | 7 | 11 | 11 | 2 | 5.3 | 11.7 | DB010209502S |
| 4 1/2 | 100 | 7 | 13 | 13 | 2 | 5.8 | 12.8 | DB010210002S |
| 5 | 105 | 7 | 13 | 13 | 2 | 6 | 13.2 | DB010210502S |
| Convex | ||||||||
| 3 1/2 | 90 | 7 | 13 | 13 | 2 | 5 | 11 | DB010209003S |
| 4 | 100 | 9 | 13 | 13 | 2 | 5.5 | 12.1 | DB010210003S |
| 4 1/2 | 102 | 10 | 13 | 13 | 2 | 5.8 | 12.8 | DB010210203S |
Details
- type: product
- SKU: 90BR3
